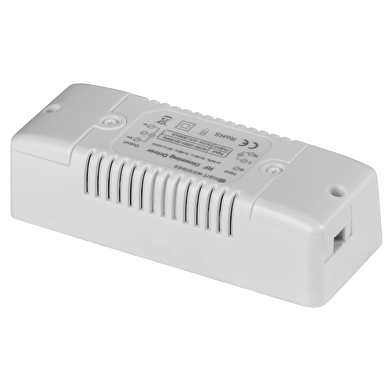

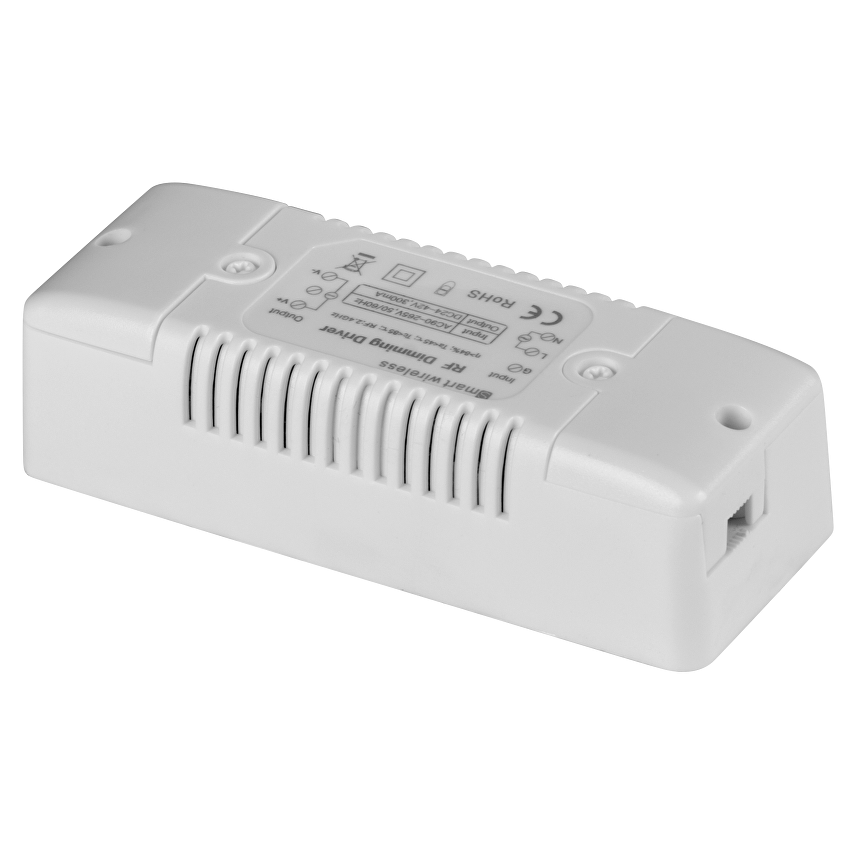

Smart 2.4G RF dimmable driver 13W, 300mA, 220-240V AC

Aрт. № SSD13300
Smart 2.4G RF dimmable driver 13W, 300mA, 220-240V AC

Smart 2.4G RF dimmable driver 13W, 300mA, 220-240V AC

Art № SSD13300
description:

SSD13300 is a dimmable constant current driver designed for LED luminaires that have an input current 300 mA DC. Can be controlled by any RF remote from the series. Compatible with all models 8W - DIS827, DIS842, DIR827, DIR842 and 12W Indirect LED downlights UltraLux - ILDR1227, ILDR1242, ILDS1227, DIS1242.
The command range of the 2.4G Smart system is expanded and isn’t limited to the range of the remote-control device. In bigger rooms/premises, exceeding the command range of the remote-control, the drivers/dimmers transfer the commanding signal between them and mutually check each other’s condition. This is only possible when the distance between two neighboring drivers/dimmers is less than 10 meters.

specifications:
Max output power DC 13W
Input voltage AC 220-240V
Frequency 50-60Hz
Output current 300mA
Output voltage 24-42V
RF frequency 2.4 GHz
Protection rating IP20
Working temperature range -10 °C ÷ +40 °C
Dimensions 45/115/32mm
Control type RF
Warranty 2 years
description:

SSD13300 is a dimmable constant current driver designed for LED luminaires that have an input current 300 mA DC. Can be controlled by any RF remote from the series. Compatible with all models 8W - DIS827, DIS842, DIR827, DIR842 and 12W Indirect LED downlights UltraLux - ILDR1227, ILDR1242, ILDS1227, DIS1242.
The command range of the 2.4G Smart system is expanded and isn’t limited to the range of the remote-control device. In bigger rooms/premises, exceeding the command range of the remote-control, the drivers/dimmers transfer the commanding signal between them and mutually check each other’s condition. This is only possible when the distance between two neighboring drivers/dimmers is less than 10 meters.
