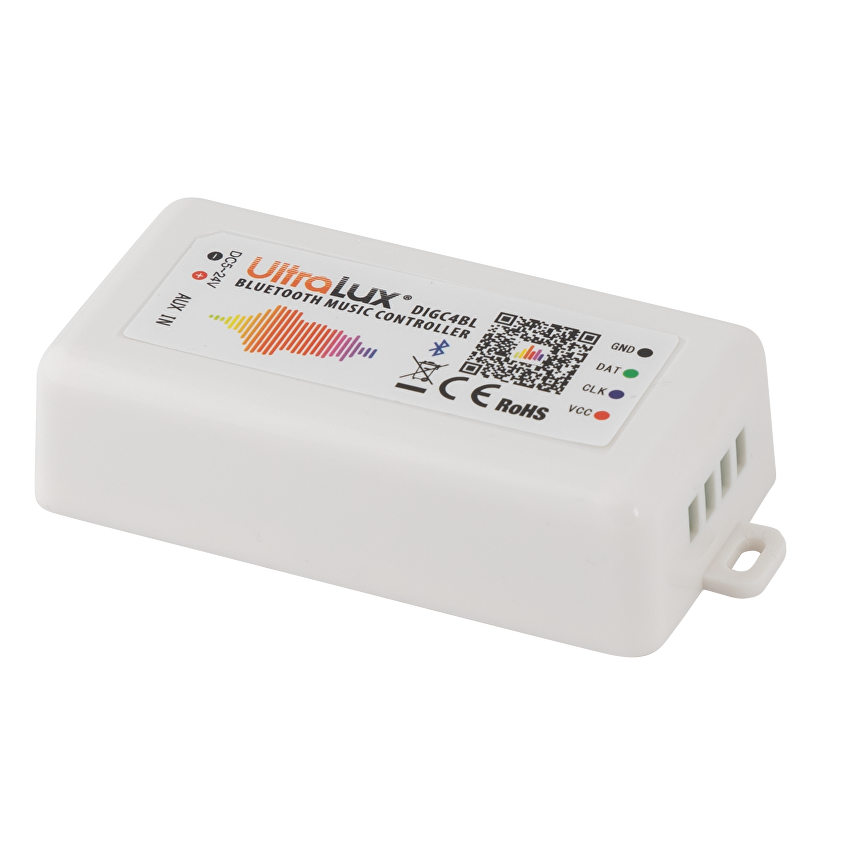

Bluetooth music controller for Digital RGB LED lighting 5-24V DC, 960 pixels

Aрт. № DIGC4BL
Bluetooth music controller for Digital RGB LED lighting 5-24V DC, 960 pixels
Bluetooth music controller for Digital RGB LED lighting 5-24V DC, 960 pixels Bluetooth music controller for Digital RGB LED lighting 5-24V DC, 960 pixels

Bluetooth music controller for Digital RGB LED lighting 5-24V DC, 960 pixels

Art № DIGC4BL
description:

DIGC4BL is а controller for digital LED lighting with IC chip WS2815B (LED strip ULTRALUX prod. No PN5060DIG), and IC WS2811 (module prod. No DM550501RGB). In digital lighting, LEDs are divided into sections that are controlled. In this way, in addition to static colors, lighting effects such as running light, overflows and light movement are achieved.

Advantages:

  • It has a great controlling capacity – 960 pixels
  • Maintains a large number of IC chips WS2815B, WS2811 and many other
  • LED Chord is a free app for IOS and Android with user-friendly interface;
  • Option for synchronization of the lighting with music through the inbuilt microphone or stereo audio input. The controller has 18 linear (2D) and 30 matrix (3D) musical effects;
  • Variety of static colours and dynamic programs that do not synchronize with the music;
  • Easy and intuitive real-time adjustment of the lighting parameters: speed of the lighting effect, brightness of light, etc.;
  • Bluetooth connection between the smartphone and the controller ensuring a wide working range – up to 20 meters
  • Wide supply voltage 5-24 V DC;

Usage:

  • Effect, decorative lighting for advertisement stands, facdes, hotels and restaurants, clubs, casinos, etc.
  • Also suitable for automobile interior usage.
specifications:
Voltage DC 5/12/24V
Protection rating IP20
Working temperature range 0 °C ÷ 40 °C
Dimensions 100/45/22mm
Control type Bluetooth
Range 20m
Dynamic modes 180
Number of static colours 16 000 000
Warranty 2 years
Type of lighting digital RGB
Software LED Chord
description:

DIGC4BL is а controller for digital LED lighting with IC chip WS2815B (LED strip ULTRALUX prod. No PN5060DIG), and IC WS2811 (module prod. No DM550501RGB). In digital lighting, LEDs are divided into sections that are controlled. In this way, in addition to static colors, lighting effects such as running light, overflows and light movement are achieved.

Advantages:

  • It has a great controlling capacity – 960 pixels
  • Maintains a large number of IC chips WS2815B, WS2811 and many other
  • LED Chord is a free app for IOS and Android with user-friendly interface;
  • Option for synchronization of the lighting with music through the inbuilt microphone or stereo audio input. The controller has 18 linear (2D) and 30 matrix (3D) musical effects;
  • Variety of static colours and dynamic programs that do not synchronize with the music;
  • Easy and intuitive real-time adjustment of the lighting parameters: speed of the lighting effect, brightness of light, etc.;
  • Bluetooth connection between the smartphone and the controller ensuring a wide working range – up to 20 meters
  • Wide supply voltage 5-24 V DC;

Usage:

  • Effect, decorative lighting for advertisement stands, facdes, hotels and restaurants, clubs, casinos, etc.
  • Also suitable for automobile interior usage.
