LED industrial linear lighting fixture PC housing, 1.50m, 54W, 4000K, 220-240V AC, IP66

Aрт. № LITH1505440
LED industrial linear lighting fixture PC housing, 1.50m, 54W, 4000K, 220-240V AC, IP66
LED industrial linear lighting fixture PC housing, 1.50m, 54W, 4000K, 220-240V AC, IP66 LED industrial linear lighting fixture PC housing, 1.50m, 54W, 4000K, 220-240V AC, IP66 LED industrial linear lighting fixture PC housing, 1.50m, 54W, 4000K, 220-240V AC, IP66 LED industrial linear lighting fixture PC housing, 1.50m, 54W, 4000K, 220-240V AC, IP66 LED industrial linear lighting fixture PC housing, 1.50m, 54W, 4000K, 220-240V AC, IP66

LED industrial linear lighting fixture PC housing, 1.50m, 54W, 4000K, 220-240V AC, IP66

Art № LITH1505440
description:

This range of LED fixtures is specifically designed for industrial lighting, warehouses, indoor and outdoor spaces. The luminaries could use either direct mounting (with the brackets included in the set) or suspension mounting (with steel wire - sold separately). The high energy efficiency allows high and uniform lighting at low power consumption.

  • Very high efficiency - 140 lm / W;
  • LG SMD 2835 diodes deliver excellent illumination with low power consumption and long exploitation period - over 50 000 hours;

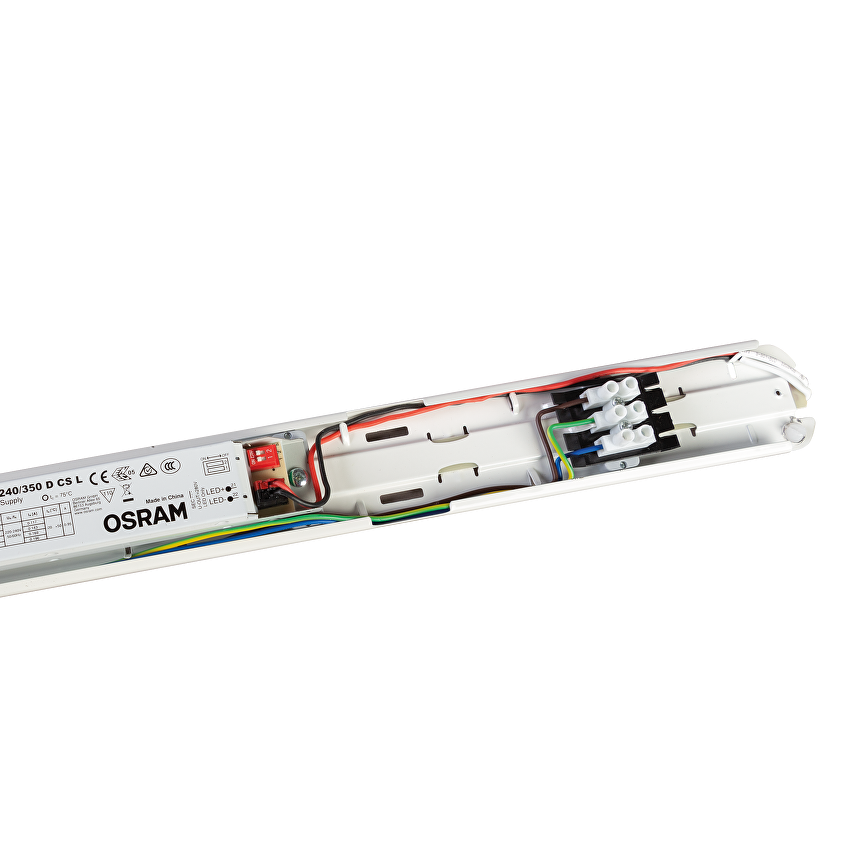

  • High-class OSRAM and TRIDONIC drivers are a sure guarantee for reliable operation;
  • Housing and diffuser made of high quality polycarbonate. The diffuser is semi-opal and specially designed to prevent dazzling;

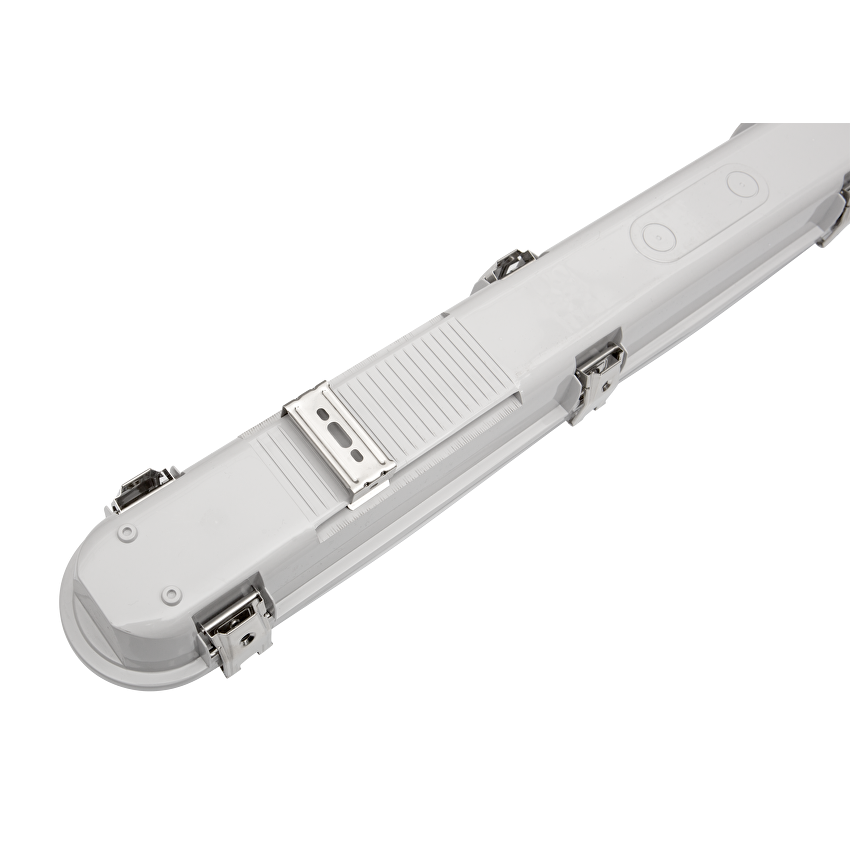

  • The clamping clips have a safety locking mechanism;
  • The fastening brackets and clips are made of stainless steel;
  • Cable gland with high ingress protection rate IP66;
  • Silicone sealing prevent the ingress of moisture and dust;
  • High impact resistance rate IK10;
  • The fixtures use aluminum diode PCBs for better heat dissipation and provide better cooling and long exploitation period;
  • Flicker-free light;
  • Glow wire test: 850˚C.

Application:

  • Warehouses
  • Industrial lighting
  • Production facilities
  • Parking lots and garages



specifications:
Power 54W
Input voltage 220-240V AC
Frequency 50-60Hz
Power factor >0.95
Driver Osram, built-in, non-dimmable
Protection rating IP66
Impact protection rate IK10
Working temperature range -20 ⁰C ÷ +45 ⁰C
Glow wire test 850°C⁰C
Diffuser semi-opal PC
On/Off cycles >30000
Housing PC
Weight 1.95kg

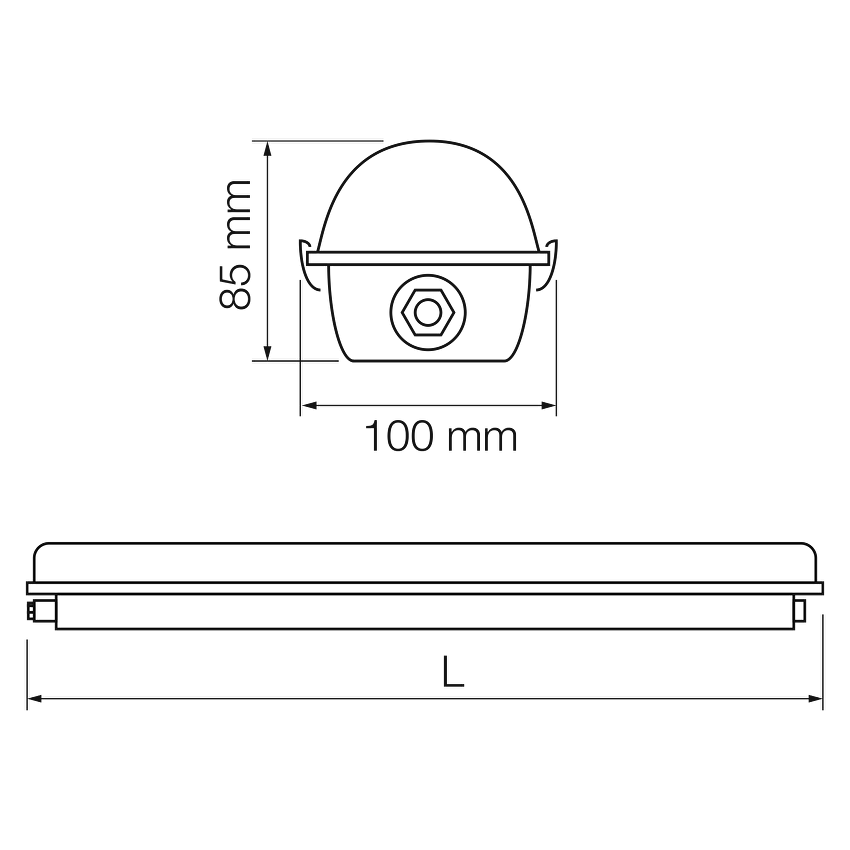

Dimensions 1560/85/100mm
Lumen Maintenance LM80 >50000h
Warranty 5 years
Rated luminous flux 7500lm
Efficiency 140lm/W
Flicker <5%
Correlated Color Temperature (CCT) 4000K
Color Rendering Index (CRI) ≥80 (85 optional)
Beam angle 120⁰
LED type LG, SMD
Photometric file (.LDT) Yes
description:

This range of LED fixtures is specifically designed for industrial lighting, warehouses, indoor and outdoor spaces. The luminaries could use either direct mounting (with the brackets included in the set) or suspension mounting (with steel wire - sold separately). The high energy efficiency allows high and uniform lighting at low power consumption.

  • Very high efficiency - 140 lm / W;
  • LG SMD 2835 diodes deliver excellent illumination with low power consumption and long exploitation period - over 50 000 hours;
  • High-class OSRAM and TRIDONIC drivers are a sure guarantee for reliable operation;
  • Housing and diffuser made of high quality polycarbonate. The diffuser is semi-opal and specially designed to prevent dazzling;
  • The clamping clips have a safety locking mechanism;
  • The fastening brackets and clips are made of stainless steel;
  • Cable gland with high ingress protection rate IP66;
  • Silicone sealing prevent the ingress of moisture and dust;
  • High impact resistance rate IK10;
  • The fixtures use aluminum diode PCBs for better heat dissipation and provide better cooling and long exploitation period;
  • Flicker-free light;
  • Glow wire test: 850˚C.

Application:

  • Warehouses
  • Industrial lighting
  • Production facilities
  • Parking lots and garages
