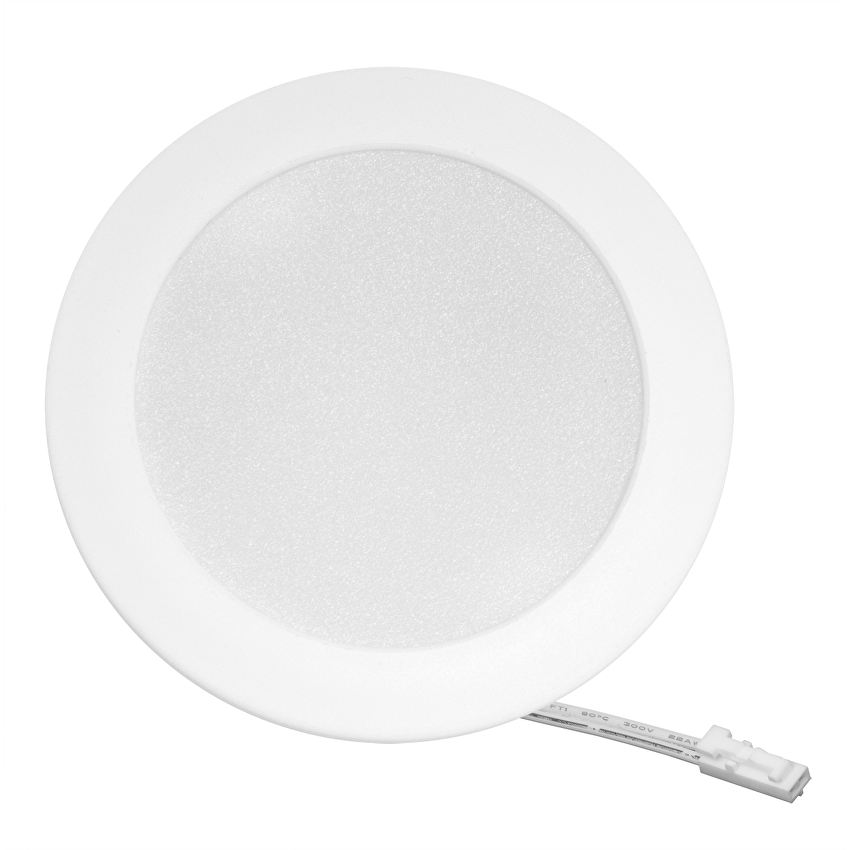

LED cabinet downlight for building-in, round, 4W, 3000K/4000K/6500K, 12V DC, IP44, white

Aрт. № ML124CCT
new
LED cabinet downlight for building-in, round, 4W, 3000K/4000K/6500K, 12V DC, IP44, white
LED cabinet downlight for building-in, round, 4W, 3000K/4000K/6500K, 12V DC, IP44, white LED cabinet downlight for building-in, round, 4W, 3000K/4000K/6500K, 12V DC, IP44, white

LED cabinet downlight for building-in, round, 4W, 3000K/4000K/6500K, 12V DC, IP44, white

Art № ML124CCT
description:

A new model of downlight for building-in furniture, cabinets, shelves, etc. The product has an option for choice of colour temperature and following advantages:

  • Colour temperature (3000K/4000K/6500K) could be chosen by a switch, placed on the back of the product.

Attention! Change of colour temperature should be carried out only when the power supply is turned off!

  • Standard dimensions and mounting hole. This allows the product to replace the less efficient halogen cabinet downlights.
  • Plug and play – the power cable ends with a power connector that fits the power supplies for cabinet lighting Ultralux.
  • The product could be used in rooms with higher levels of moisture and dust (bathrooms, corridors, staircases) in accordance with ingress protection rate IP44
  • Safe low supply voltage 12 V DC. Minimal danger from an eventual electrical damage.
  • Mounting cut could be between 55 and 58 mm.
  • Housing made from thermal-conductive technical plastic that ensure optimal cooling.

Attention: Make sure you allow enough space behind the downlight so that it could cool properly.

  • Beam angle 120° creates even light distribution.
  • Built-in non-dimmable driver guarantees reliable operation and long exploitation period.
  • High colour rendering index Ra≥80. The downlight realistically recreates the colours of the illuminated objects and it is suitable for exposition in museums and exhibition halls.
  • The length of the supply cable is 60 cm, more convenient when mounting.
specifications:
Power 4W
Class III
Voltage DC 12V
Protection rating IP44
Working temperature range -10 °C ÷ +40 °C
On/Off cycles >15000

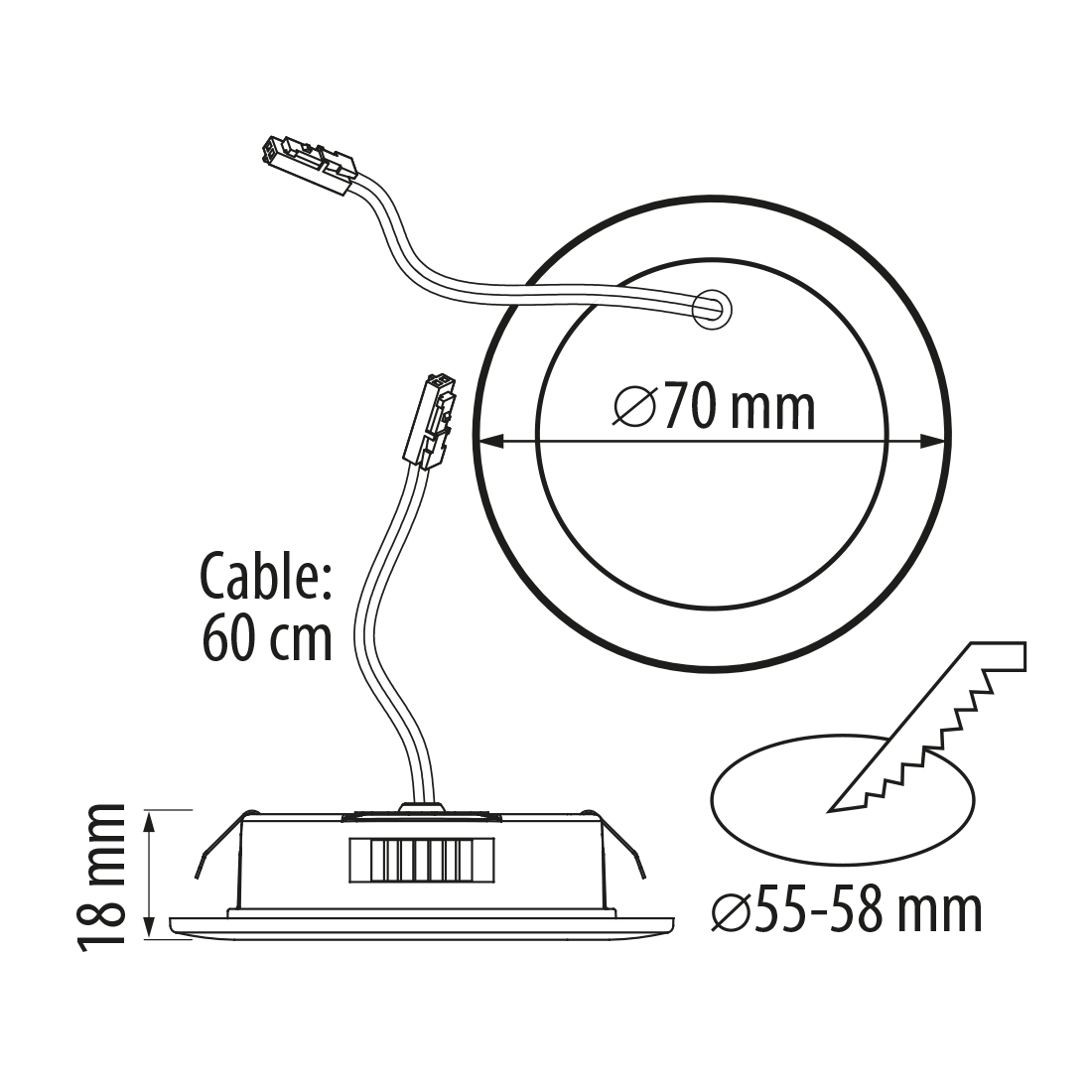

Dimensions ø70/18mm
Mounting hole ø55-58mm
Lumen Maintenance LM80 >25000h
Colour white
Starting time <0.2sec
Cable length 600mm
Warranty 2 years
Shape round
Rated luminous flux 380lm
Correlated Color Temperature (CCT) 3000K/4000K/6500K
Color Rendering Index (CRI) ≥80
Beam angle 120⁰
LED type SMD2835
description:

A new model of downlight for building-in furniture, cabinets, shelves, etc. The product has an option for choice of colour temperature and following advantages:

  • Colour temperature (3000K/4000K/6500K) could be chosen by a switch, placed on the back of the product.

Attention! Change of colour temperature should be carried out only when the power supply is turned off!

  • Standard dimensions and mounting hole. This allows the product to replace the less efficient halogen cabinet downlights.
  • Plug and play – the power cable ends with a power connector that fits the power supplies for cabinet lighting Ultralux.
  • The product could be used in rooms with higher levels of moisture and dust (bathrooms, corridors, staircases) in accordance with ingress protection rate IP44
  • Safe low supply voltage 12 V DC. Minimal danger from an eventual electrical damage.
  • Mounting cut could be between 55 and 58 mm.
  • Housing made from thermal-conductive technical plastic that ensure optimal cooling.

Attention: Make sure you allow enough space behind the downlight so that it could cool properly.

  • Beam angle 120° creates even light distribution.
  • Built-in non-dimmable driver guarantees reliable operation and long exploitation period.
  • High colour rendering index Ra≥80. The downlight realistically recreates the colours of the illuminated objects and it is suitable for exposition in museums and exhibition halls.
  • The length of the supply cable is 60 cm, more convenient when mounting.
