LED dimmable module, 6W, 3000K/4000K/6500K, 220-240V AC, IP44

Aрт. № LM6DCCT
LED dimmable module, 6W, 3000K/4000K/6500K, 220-240V AC, IP44
LED dimmable module, 6W, 3000K/4000K/6500K, 220-240V AC, IP44 LED dimmable module, 6W, 3000K/4000K/6500K, 220-240V AC, IP44 LED dimmable module, 6W, 3000K/4000K/6500K, 220-240V AC, IP44

LED dimmable module, 6W, 3000K/4000K/6500K, 220-240V AC, IP44

Art № LM6DCCT
Energy class F
description:

A dimmable LED module with choice of colour temperature. It is compatible with all ceiling downlight frames for building-in and surface mounting (as a replacement of PAR16 type lights). The product has 6W power.

Advantages:

  • Could be used as a 230V AC light source with all the ceiling downlights frames for building-in and surface mounting that work with PAR16 type lights.
  • Compatible with most of the TRIAC dimmers for RC load that are available on the market.

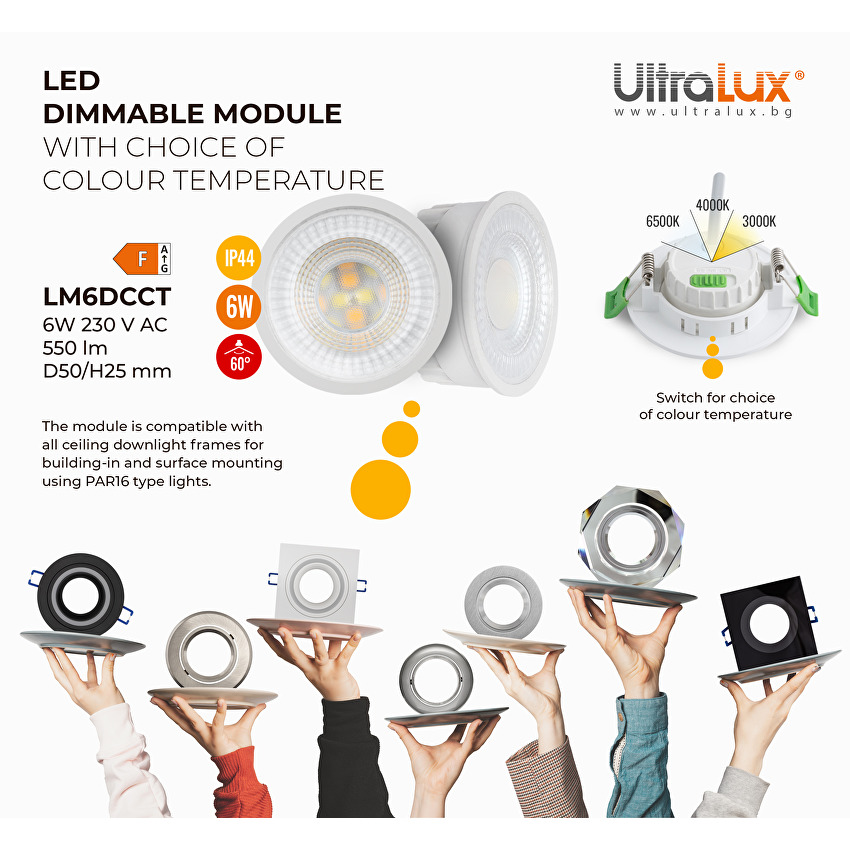

  • Option for choice of colour temperature (3000K/4000K/6500K). This is carried out with a switch on the back of the module.
    Attention! When switching the colour temperature always make sure that the supply voltage is turned OFF!
  • Higher class ingress protection rate against dampness and dust – IP44. Suitable for bathrooms, laundry rooms, corridors, kitchens, etc.
  • The compact dimensions allow mounting in shallower suspended ceilings.
  • Beam angle of 60° makes it excellent for accent lighting.
  • Optical system from UV-stable polycarbonate.
  • Housing from heat conductive PA plastic.
  • Double insulated cable.
  • Colour rendering index Ra≥80 – the colours of the illuminated objects are naturally perceived by the human eye.
specifications:
Power 6W
Voltage AC 220-240V
Frequency 50-60Hz
Power factor ≥0.80
Class II
Dimmable TRIAC dimming
Protection rating IP44
Working temperature range -10 °C ÷ +40 °C
On/Off cycles >15000
Dimensions Ø50/25mm
Lumen Maintenance LM80 >25000h
Dimming range 0%-100%
Colour white
Starting time <0.2sec
Warranty 2 years
Rated luminous flux 500/550/550lm
Correlated Color Temperature (CCT) 3000K/4000K/6500K
Color Rendering Index (CRI) ≥80
Beam angle 60⁰
LED type SMD2835
description:

A dimmable LED module with choice of colour temperature. It is compatible with all ceiling downlight frames for building-in and surface mounting (as a replacement of PAR16 type lights). The product has 6W power.

Advantages:

  • Could be used as a 230V AC light source with all the ceiling downlights frames for building-in and surface mounting that work with PAR16 type lights.
  • Compatible with most of the TRIAC dimmers for RC load that are available on the market.
  • Option for choice of colour temperature (3000K/4000K/6500K). This is carried out with a switch on the back of the module.
    Attention! When switching the colour temperature always make sure that the supply voltage is turned OFF!
  • Higher class ingress protection rate against dampness and dust – IP44. Suitable for bathrooms, laundry rooms, corridors, kitchens, etc.
  • The compact dimensions allow mounting in shallower suspended ceilings.
  • Beam angle of 60° makes it excellent for accent lighting.
  • Optical system from UV-stable polycarbonate.
  • Housing from heat conductive PA plastic.
  • Double insulated cable.
  • Colour rendering index Ra≥80 – the colours of the illuminated objects are naturally perceived by the human eye.
