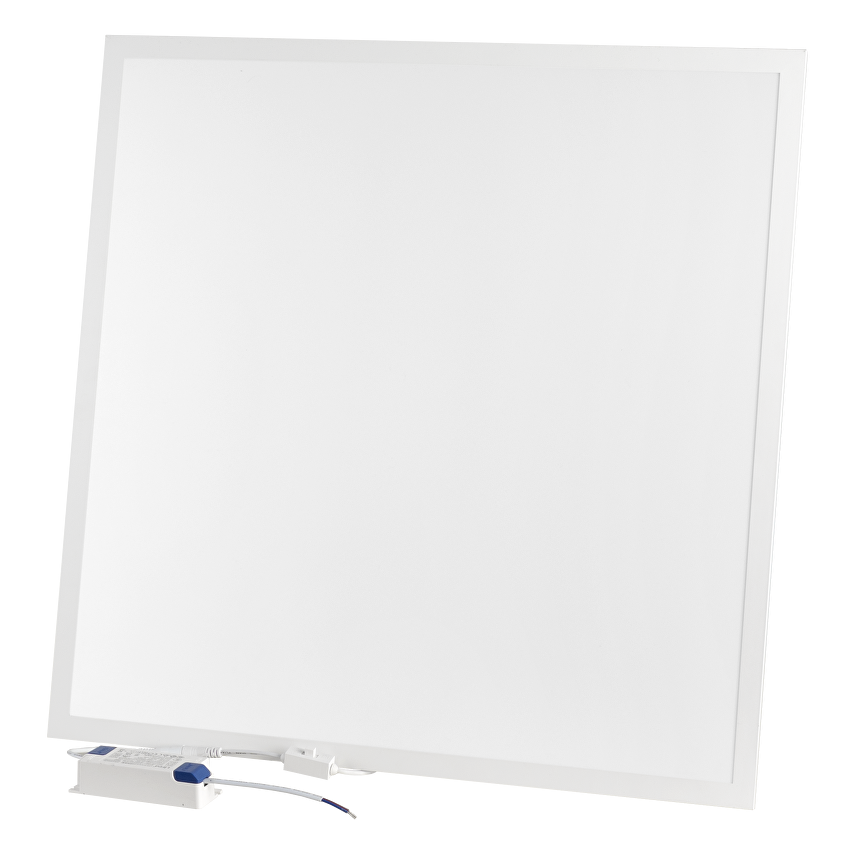

LED panel 600х600 mm, 40W, 3000K/4000K/6000K, 135 lm/W, 220V-240V AC, IP44

Aрт. № LPN6640CCT
new
LED panel 600х600 mm, 40W, 3000K/4000K/6000K, 135 lm/W, 220V-240V AC, IP44
LED panel 600х600 mm, 40W, 3000K/4000K/6000K, 135 lm/W, 220V-240V AC, IP44 LED panel 600х600 mm, 40W, 3000K/4000K/6000K, 135 lm/W, 220V-240V AC, IP44 LED panel 600х600 mm, 40W, 3000K/4000K/6000K, 135 lm/W, 220V-240V AC, IP44

LED panel 600х600 mm, 40W, 3000K/4000K/6000K, 135 lm/W, 220V-240V AC, IP44

Art № LPN6640CCT
description:

A new model LED panel 600x600 with option for choice of colour temperature. The product is characterized with excellent quality and parameters, covering the highest requirements and following advantages:

  • Very high efficiency – 137 lm/W.

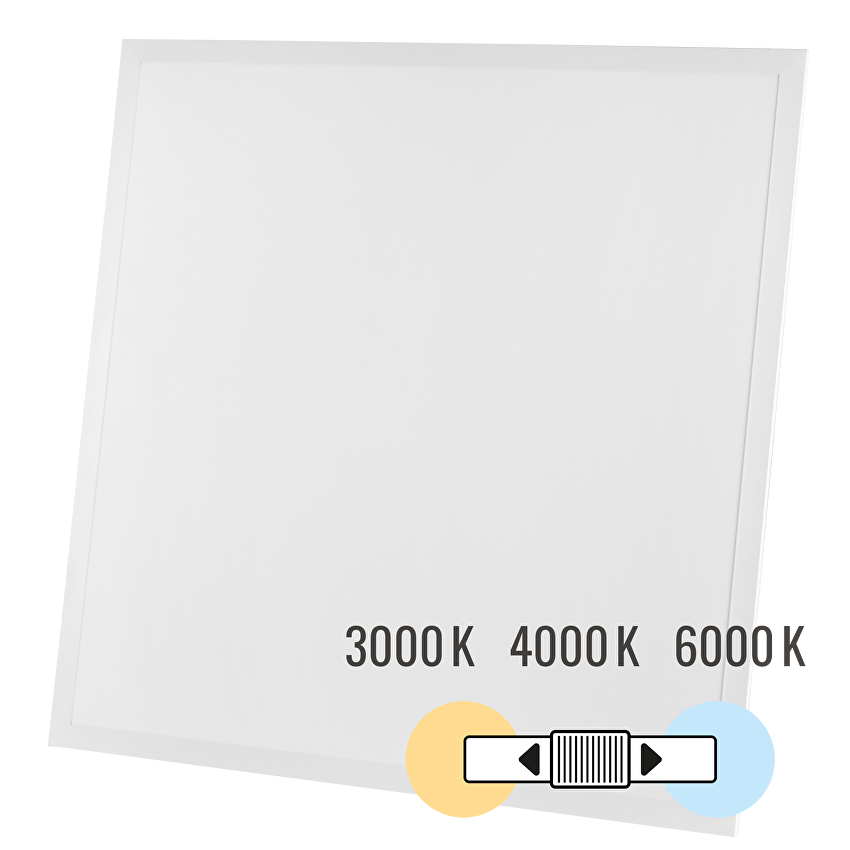

  • Option for regulating the light’s colour temperature – 3000K/4000K/6000K.
  • The diodes are places on the back of the housing. This type of construction ensures an excellent temperature management, high energy efficiency and lack of light conductor, that on most panels goes yellow with time.
  • External non dimmable driver Lifud. The product parameters allow its dimming with a driver that you could buy separately. Also, you could use emergency supply module, that could be installed with it.
  • Each diode has an optical lens from polycarbonate that would evenly distribute the light toward the diffuser (no shades).
  • The luminaires’ size corresponds with the suspended Armstrong ceiling and could replace the classic fluorescent fixtures. There is no need of additional cabling.
  • The driver does not allow the installation of the panel with frame for surface mounting (prod. code FSM662).
  • Installation could be carried out with suspending accessories KELP82.
  • The frontal surface of the panel has an IP44. This allows its use in rooms with higher levels of moisture and dust.
  • Emitted light is flicker-free.
  • CRI index Ra≥80.
  • Reinforced frame and diffuser that improve the product’s durability (it does not twist or bend).
  • Warranty – 5 years.



specifications:
Power 40W
Voltage AC 220-240V
Frequency 50-60Hz
Power factor >0.9
Class II
Dimmable with additional driver
Rated luminous flux 5500lm
Flicker Flickerless
Correlated Color Temperature (CCT) 3000K/4000K/6000K
Color Rendering Index (CRI) ≥80
Beam angle 120⁰
LED type SMD2835
Protection rating IP44
Working temperature range -10 °C ÷ +40 °C
On/Off cycles >15000

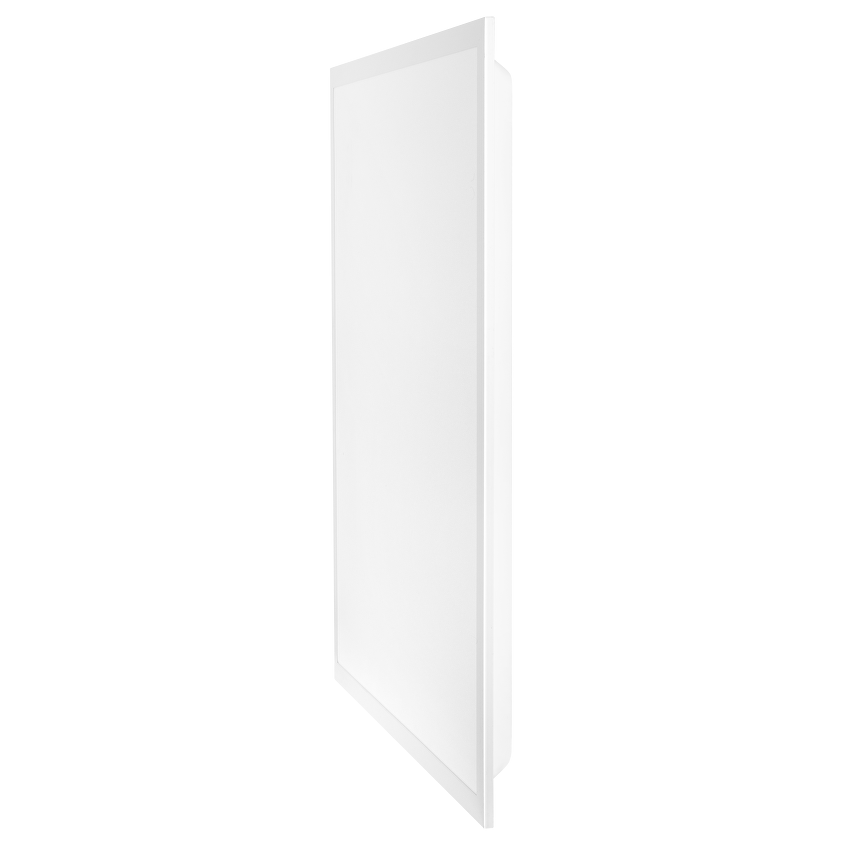

Dimensions 595/595/30mm
Mounting hole 578/578mm
Lumen Maintenance LM80 >30000h
Starting time <0.2sec
Warranty 5 years
description:

A new model LED panel 600x600 with option for choice of colour temperature. The product is characterized with excellent quality and parameters, covering the highest requirements and following advantages:

  • Very high efficiency – 137 lm/W.
  • Option for regulating the light’s colour temperature – 3000K/4000K/6000K.
  • The diodes are places on the back of the housing. This type of construction ensures an excellent temperature management, high energy efficiency and lack of light conductor, that on most panels goes yellow with time.
  • External non dimmable driver Lifud. The product parameters allow its dimming with a driver that you could buy separately. Also, you could use emergency supply module, that could be installed with it.
  • Each diode has an optical lens from polycarbonate that would evenly distribute the light toward the diffuser (no shades).
  • The luminaires’ size corresponds with the suspended Armstrong ceiling and could replace the classic fluorescent fixtures. There is no need of additional cabling.
  • The driver does not allow the installation of the panel with frame for surface mounting (prod. code FSM662).
  • Installation could be carried out with suspending accessories KELP82.
  • The frontal surface of the panel has an IP44. This allows its use in rooms with higher levels of moisture and dust.
  • Emitted light is flicker-free.
  • CRI index Ra≥80.
  • Reinforced frame and diffuser that improve the product’s durability (it does not twist or bend).
  • Warranty – 5 years.
