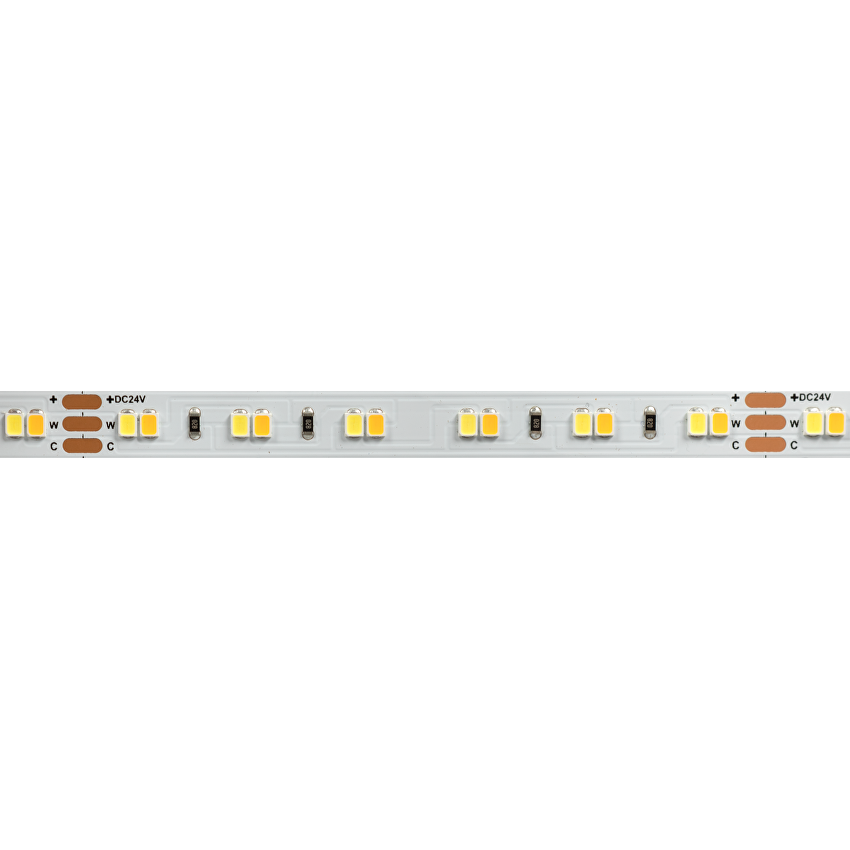

Professional LED strip CCT 18W/m, 2700K-6500K, 24V DC, 120LEDs/m, SMD2835, IP20

Aрт. № PN28120CCT
Professional LED strip CCT 18W/m, 2700K-6500K, 24V DC, 120LEDs/m, SMD2835, IP20
Professional LED strip CCT 18W/m, 2700K-6500K, 24V DC, 120LEDs/m, SMD2835, IP20 Professional LED strip CCT 18W/m, 2700K-6500K, 24V DC, 120LEDs/m, SMD2835, IP20

Professional LED strip CCT 18W/m, 2700K-6500K, 24V DC, 120LEDs/m, SMD2835, IP20

Art № PN28120CCT
Energy class E
description:

The professional line of LED strips is designed for carrying out projects with longer operating time. The professional strips are made with quality flexible copper PCBs (99.99% Cu) and highly efficient LEDs with colour rendering index Ra > 80 or Ra > 90. The PCBs are double layered with up to 4 oz thickness, depending on the strip’s power. For additional efficiency, the professional strips use a constant current control, maintaining equal brightness along the entire strips’ length. Their operational voltage is 24V DC or 48V DC. Standard deviation colour matching (SDCM) is < 3.

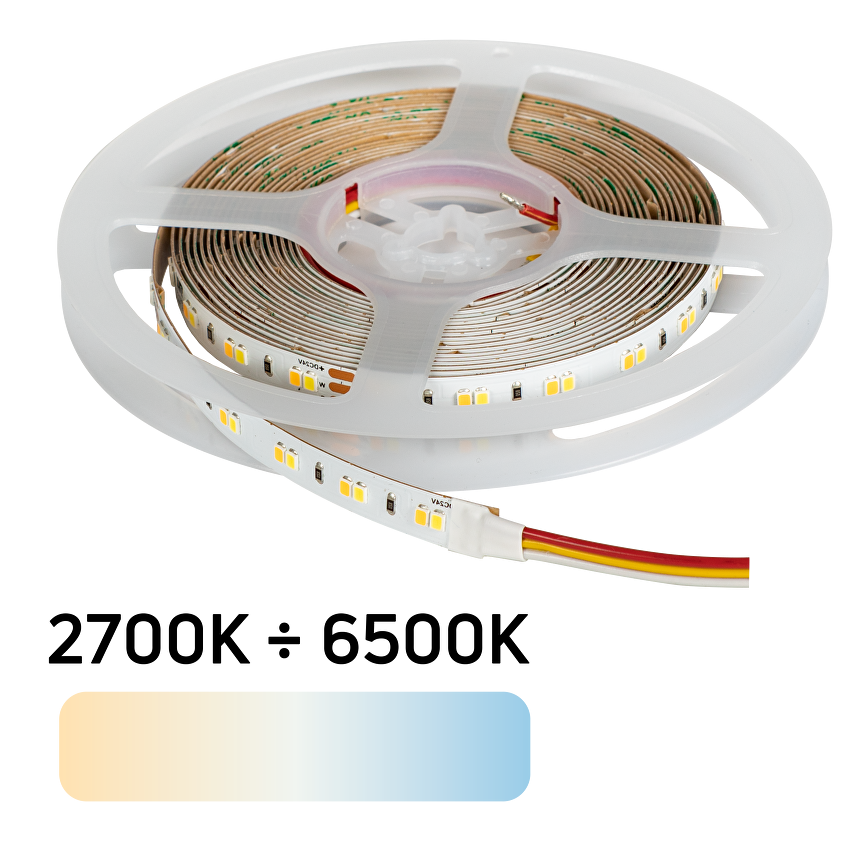

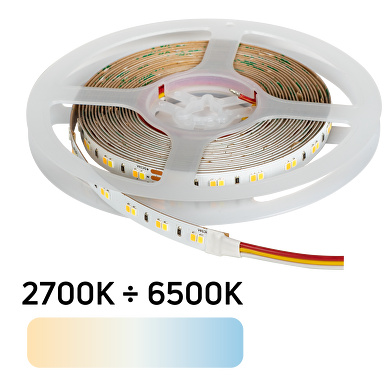

Constant power and brightness along the strip. The length per single roll is 5 m, 24V DC. The strip has a wide color temperature span 2700K – 6500 K. It finds a wide use in advertising, effect, decorative and home lighting.

The strip’s control is carried out with a smart controller SSMFC24A.

specifications:
Power per meter 18W/m
Voltage DC 24V
Dimmable PWM and voltage dimming
Protection rating IP20
Working temperature range -10 °C ÷ +40 °C
Lumen Maintenance LM80 50000h
Starting time <0.2sec
Strip width 10mm
Strip length 5m
Warranty 3 years
LEDs per meter 120LEDS/m
Correlated Color Temperature (CCT) 2700K-4200K-6500K
Color Rendering Index (CRI) >80
Beam angle 120⁰
LED type SMD2835
luminous flux per meter 1900lm/m
Type of light warm-neutral-cold
description:

The professional line of LED strips is designed for carrying out projects with longer operating time. The professional strips are made with quality flexible copper PCBs (99.99% Cu) and highly efficient LEDs with colour rendering index Ra > 80 or Ra > 90. The PCBs are double layered with up to 4 oz thickness, depending on the strip’s power. For additional efficiency, the professional strips use a constant current control, maintaining equal brightness along the entire strips’ length. Their operational voltage is 24V DC or 48V DC. Standard deviation colour matching (SDCM) is < 3.

Constant power and brightness along the strip. The length per single roll is 5 m, 24V DC. The strip has a wide color temperature span 2700K – 6500 K. It finds a wide use in advertising, effect, decorative and home lighting.

The strip’s control is carried out with a smart controller SSMFC24A.
