Professional LED strip with constant current control 7W/m, 2700K, 48VDC, 112LEDs/m, 10m, IP20

Aрт. № PS35112W
Professional LED strip with constant current control 7W/m, 2700K, 48VDC, 112LEDs/m, 10m, IP20
Professional LED strip with constant current control 7W/m, 2700K, 48VDC, 112LEDs/m, 10m, IP20 Professional LED strip with constant current control 7W/m, 2700K, 48VDC, 112LEDs/m, 10m, IP20

Professional LED strip with constant current control 7W/m, 2700K, 48VDC, 112LEDs/m, 10m, IP20

Art № PS35112W
Energy class D
description:

The professional line of LED strips is designed for carrying out projects with longer operating time. The professional strips are made with quality flexible copper PCBs (99.99% Cu) and highly efficient LEDs with colour rendering index Ra > 80 or Ra > 90. The PCBs are double layered with up to 4 oz thickness, depending on the strip’s power. For additional efficiency, the professional strips use a constant current control, maintaining equal brightness along the entire strips’ length. Their operational voltage is 24V DC or 48V DC. Standard deviation colour matching (SDCM) is < 3.

Constant power and brightness along the strip. The length per single roll is 10 m, 48V DC.

specifications:
Power per meter 7W/m
Voltage DC 48V
Dimmable PWM and voltage dimming
Protection rating IP20
Working temperature range -10 °C ÷ +40 °C
Lumen Maintenance LM80 50000h
Starting time <0.2sec

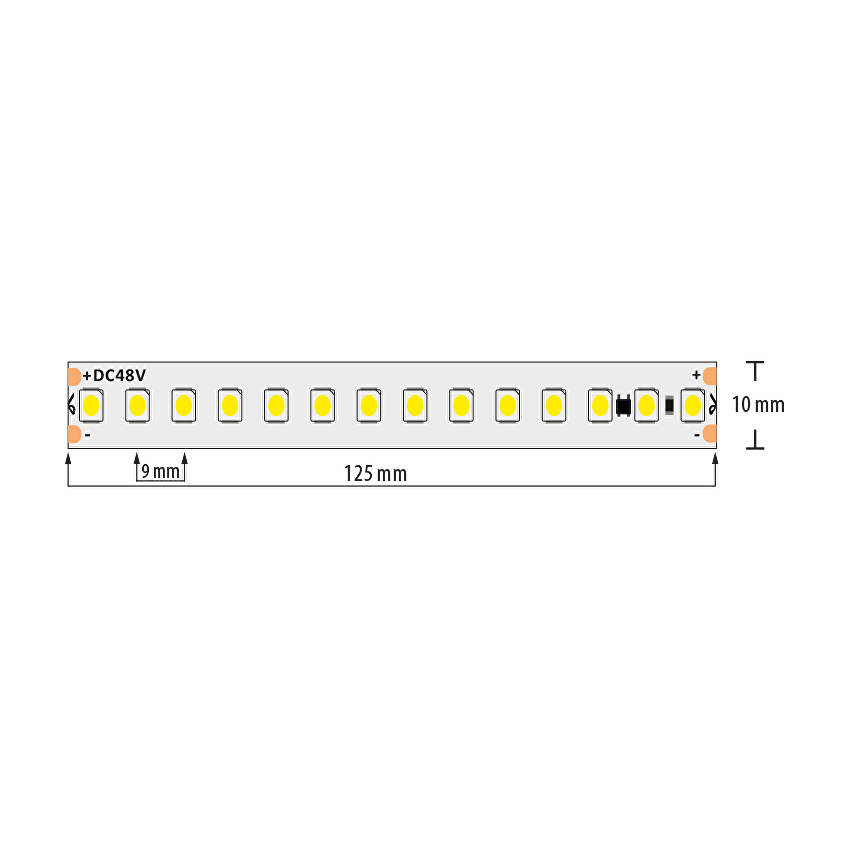

Strip width 10mm
Strip length 10m
Warranty 3 years
LEDs per meter 112LEDS/m
Correlated Color Temperature (CCT) 2700K
Beam angle 120⁰
LED type SMD3528
luminous flux per meter 820lm/m
Type of light warm white
description:

The professional line of LED strips is designed for carrying out projects with longer operating time. The professional strips are made with quality flexible copper PCBs (99.99% Cu) and highly efficient LEDs with colour rendering index Ra > 80 or Ra > 90. The PCBs are double layered with up to 4 oz thickness, depending on the strip’s power. For additional efficiency, the professional strips use a constant current control, maintaining equal brightness along the entire strips’ length. Their operational voltage is 24V DC or 48V DC. Standard deviation colour matching (SDCM) is < 3.

Constant power and brightness along the strip. The length per single roll is 10 m, 48V DC.
