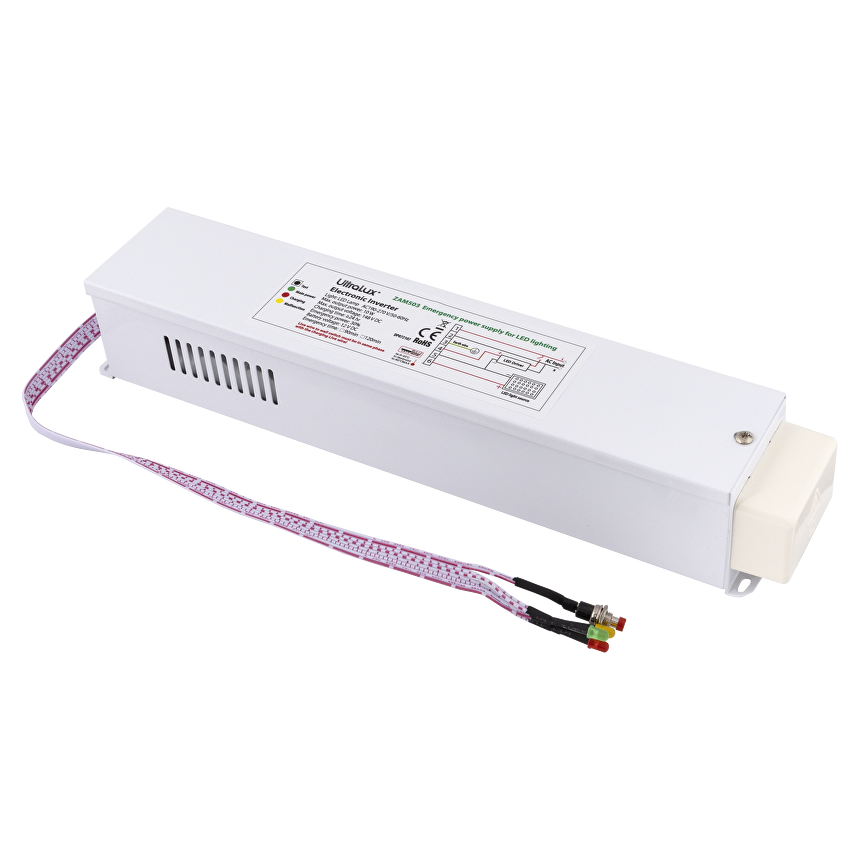

Emergency power inverter with with built-in Ni-Cd 12V, 2500 mAh battery for LED lighting

Aрт. № ZAM503
Emergency power inverter with with built-in Ni-Cd 12V, 2500 mAh battery for LED lighting
Emergency power inverter with with built-in Ni-Cd 12V, 2500 mAh battery for LED lighting

Emergency power inverter with with built-in Ni-Cd 12V, 2500 mAh battery for LED lighting

Art № ZAM503
description:

The module automatically tracks the availability of supply voltage. In normal operational mode the battery charges. Whenever the supply voltage fails, the emergency mode turns on. The luminaire could operate up to 120 min. When the battery drains down to 5%, the module automatically switches off.

  • ZAM503 complies with the requirements for emergency lighting EN50172.
  • Ensures an emergency supply with max. output power 10W.
  • The max. output voltage is 148V DC It finds usage in LED fixtures with higher supply voltage of the LED PCBs.
  • Indicator lights signalize the condition of the emergency module.
  • Test button allows a check of the emergency mode. the emergency mode.
  • Option for turning on and switching off the fixtures in normal mode.
  • One module could be used with one fixture.
  • The mounting and the maintenance should be carried out only by a qualified specialist.
  • Built-in rechargeable Ni-Cd 12 V/2500 mAh battery complies with all the fire safety requirements.
  • Built-in controller with protection from overcharging and over-discharging of the battery.
  • Initial full-charge time – 24 hours.
  • Working time in emergency mode – 120 minutes.
  • Ingress protection rate IP20.
  • The module should be connected to non-interruptible phase.

Usage:

  • Administrative and public buildings;
  • Hospitals and schools;
  • Libraries.
specifications:
Input voltage AC 190-270V
Frequency 50-60Hz
Output voltage 148V
Output Power at Emergency Mode 10W
Protection rating IP20
Working temperature range -10 °C ÷ +40 °C
Charging battery indication yes
Dimensions 390/60/72mm
Time delay 120min
Battery Accu. Ni-Cd 12V/2500 mAh
Warranty 2 years
Charging Time 24h
description:

The module automatically tracks the availability of supply voltage. In normal operational mode the battery charges. Whenever the supply voltage fails, the emergency mode turns on. The luminaire could operate up to 120 min. When the battery drains down to 5%, the module automatically switches off.

  • ZAM503 complies with the requirements for emergency lighting EN50172.
  • Ensures an emergency supply with max. output power 10W.
  • The max. output voltage is 148V DC It finds usage in LED fixtures with higher supply voltage of the LED PCBs.
  • Indicator lights signalize the condition of the emergency module.
  • Test button allows a check of the emergency mode. the emergency mode.
  • Option for turning on and switching off the fixtures in normal mode.
  • One module could be used with one fixture.
  • The mounting and the maintenance should be carried out only by a qualified specialist.
  • Built-in rechargeable Ni-Cd 12 V/2500 mAh battery complies with all the fire safety requirements.
  • Built-in controller with protection from overcharging and over-discharging of the battery.
  • Initial full-charge time – 24 hours.
  • Working time in emergency mode – 120 minutes.
  • Ingress protection rate IP20.
  • The module should be connected to non-interruptible phase.

Usage:

  • Administrative and public buildings;
  • Hospitals and schools;
  • Libraries.
