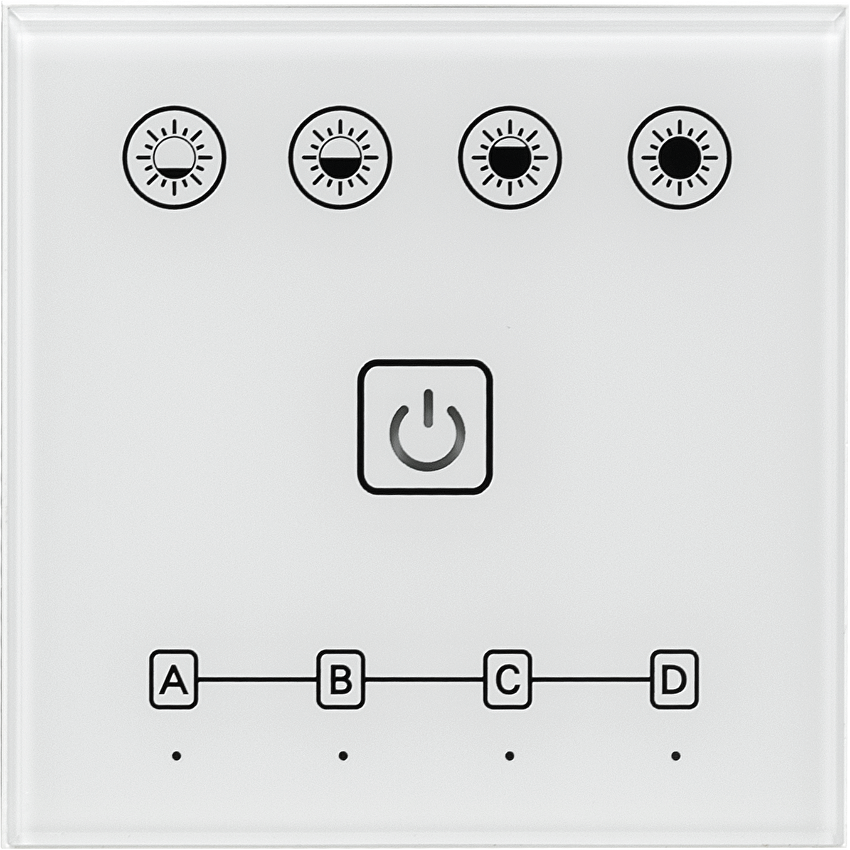

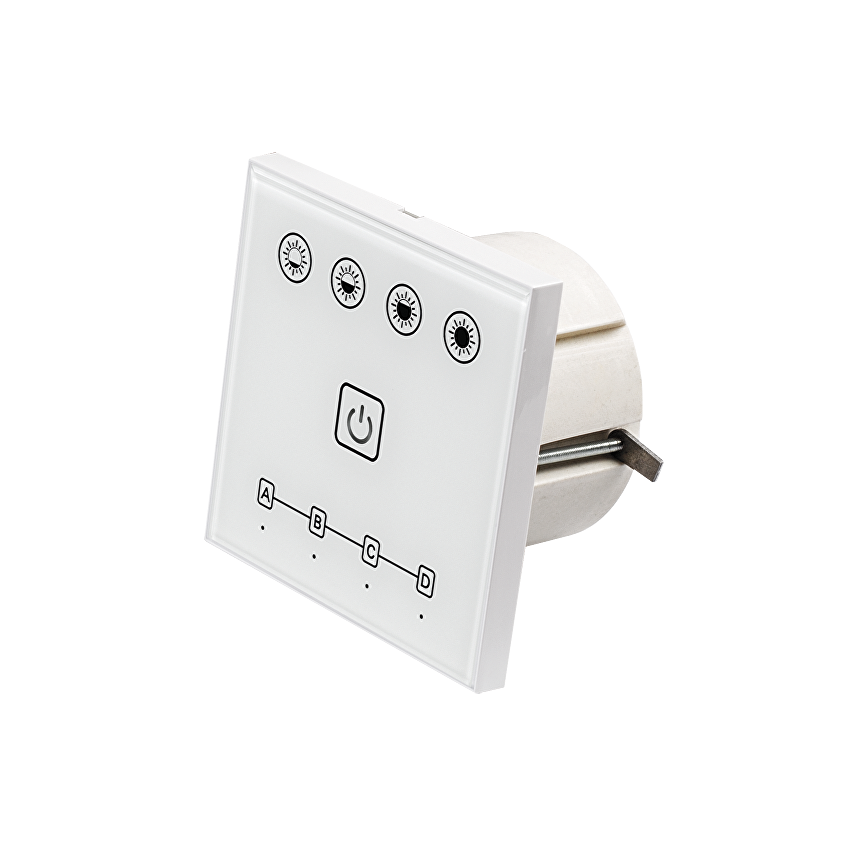

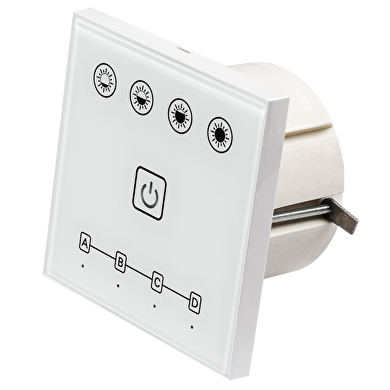

Smart 2.4G RF TOUCH wall panel for single colour LED lighting, 4 zones

Aрт. № SSW4Z
Smart 2.4G RF TOUCH wall panel for single colour LED lighting, 4 zones
Smart 2.4G RF TOUCH wall panel for single colour LED lighting, 4 zones

Smart 2.4G RF TOUCH wall panel for single colour LED lighting, 4 zones

Art № SSW4Z
description:

2.4G Smart system consists of controlled devices – drivers for LED panels and dimmers for single-colored LED strip, and controlling devices – single and four channel remote control devices and touch-panels for wall mounting. There is no limit in the number of controlled and controlling devices in one system.

In the new product version, the way of communication between the separate devices is improved – a unified RF code for communication has been introduced. It can be the code of one of the controlling (main) devices. Each driver/dimmer can memorize only one RF code, which is recorded during the initial programming. This code can be re-recorded, after the old one is deleted. Every controlling device can memorize only one RF code, i.e. each new device must copy the RF code of the main controlling device. In one 2.4G Smart system, only remote-control devices and wall touch-panels with the same number of controlled zones can be paired.

The command range of the 2.4G Smart system is expanded and isn’t limited to the range of the remote-control device. In bigger rooms/premises, exceeding the command range of the remote-control, the drivers/dimmers transfer the commanding signal between them and mutually check each other’s condition. This is only possible when the distance between two neighboring drivers/dimmers is less than 10 meters.

SSW4Z is a RF remote control device with touch technology, designed for wall-mounting, which can control 4 zones (circles) with drivers and/or dimmers from the series SSD13300, SSD40850, SSD1216.

Advantages:

  • Control of the lighting as one or separating it up to four zones.
  • Option for adding or removing of new remote-control devices and drivers in an already functioning system;
  • Unlimited amount of controlled and controlling devices in one 2.4G SMART system;
  • Quick and easy mounting in both new or existing installation;
  • The controlling interface has simple design, it is easy and convenient to use;
  • Supply voltage is 220-240 V/ 50-60 Hz, ensuring constant working process, without having to replace batteries;



specifications:
Input voltage 220-240V AC
Frequency 50-60Hz
RF frequency 2.4 GHz
Protection rating IP20
Working temperature range -10 °C ÷ +40 °C
Dimensions 87/87/33mm
Range 20m
Warranty 2 years
Zones of control 4 zones
description:

2.4G Smart system consists of controlled devices – drivers for LED panels and dimmers for single-colored LED strip, and controlling devices – single and four channel remote control devices and touch-panels for wall mounting. There is no limit in the number of controlled and controlling devices in one system.

In the new product version, the way of communication between the separate devices is improved – a unified RF code for communication has been introduced. It can be the code of one of the controlling (main) devices. Each driver/dimmer can memorize only one RF code, which is recorded during the initial programming. This code can be re-recorded, after the old one is deleted. Every controlling device can memorize only one RF code, i.e. each new device must copy the RF code of the main controlling device. In one 2.4G Smart system, only remote-control devices and wall touch-panels with the same number of controlled zones can be paired.

The command range of the 2.4G Smart system is expanded and isn’t limited to the range of the remote-control device. In bigger rooms/premises, exceeding the command range of the remote-control, the drivers/dimmers transfer the commanding signal between them and mutually check each other’s condition. This is only possible when the distance between two neighboring drivers/dimmers is less than 10 meters.

SSW4Z is a RF remote control device with touch technology, designed for wall-mounting, which can control 4 zones (circles) with drivers and/or dimmers from the series SSD13300, SSD40850, SSD1216.

Advantages:

  • Control of the lighting as one or separating it up to four zones.
  • Option for adding or removing of new remote-control devices and drivers in an already functioning system;
  • Unlimited amount of controlled and controlling devices in one 2.4G SMART system;
  • Quick and easy mounting in both new or existing installation;
  • The controlling interface has simple design, it is easy and convenient to use;
  • Supply voltage is 220-240 V/ 50-60 Hz, ensuring constant working process, without having to replace batteries;
