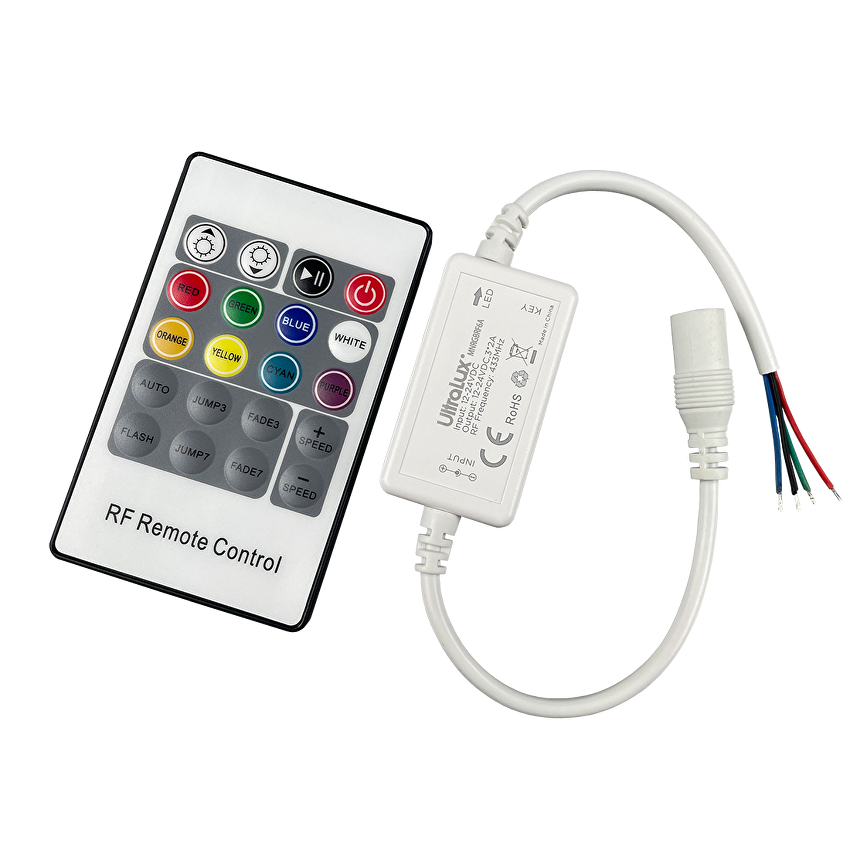

MNRGBRF6A is a mini RF controller. It for RGB LED strips. It is characterized with compact dimensions and relatively high load.
The dimmer has 8 static colours, 6 dynamic modes, dimming funtion.
Attention – when installing, always make sure to provide enough room for cooling the controllers!!!
| Maximum power | 72W/144W |
| Voltage DC | 12/24V |
| Max output current | 3 x 2A |
| RF frequency | 433.92 MHz |
| Protection rating | IP20 |
| Working temperature range | -10 °C ÷ +40 °C |
| Dimensions | 48/26/13mm |
| Control type | RF |
| Range | 20m |
| Dynamic modes | 6 |
| Number of static colours | 8 |
| Warranty | 2 years |
| Type of lighting | RGB |
