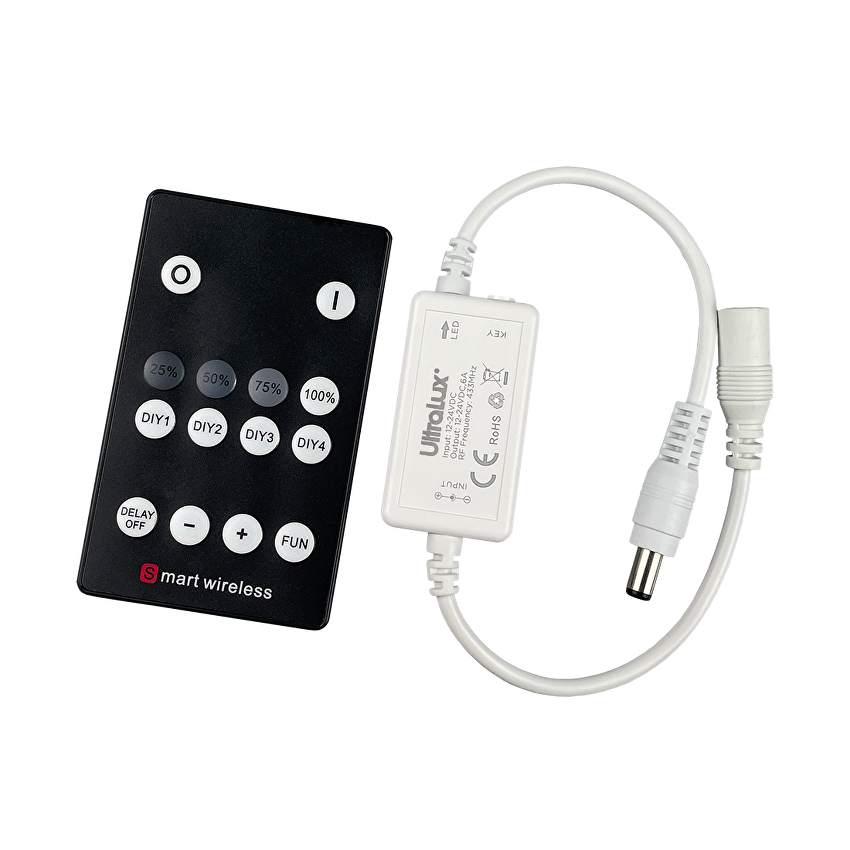

MNSCRF6A is mini RF controller for single-colour LED strips. It is characterized with compact dimensions and relatively high load. The dimmer has 4 scenes (a set of settings) that can be saved in memory, 4 buttons with different dimming levels (25%, 50%, 75%, 100%) and 2 dynamic modes (flashing and fading). If needed, pressing the button on the dimmer quickly activates the saved settings.
Attention – when installing, always make sure to provide enough room for cooling the controllers!!!
| Maximum power | 72W/144W |
| Voltage DC | 12/24V |
| Max output current | 1 х 6A |
| RF frequency | 433.92 MHz |
| Protection rating | IP20 |
| Working temperature range | -10 °C ÷ +40 °C |
| Dimensions | 48/26/13mm |
| Control type | RF |
| Range | 20m |
| Dynamic modes | преливане и блиц |
| Warranty | 2 years |
| Type of lighting | single colour |
MNSCRF6A is mini RF controller for single-colour LED strips. It is characterized with compact dimensions and relatively high load. The dimmer has 4 scenes (a set of settings) that can be saved in memory, 4 buttons with different dimming levels (25%, 50%, 75%, 100%) and 2 dynamic modes (flashing and fading). If needed, pressing the button on the dimmer quickly activates the saved settings.
Attention – when installing, always make sure to provide enough room for cooling the controllers!!!
