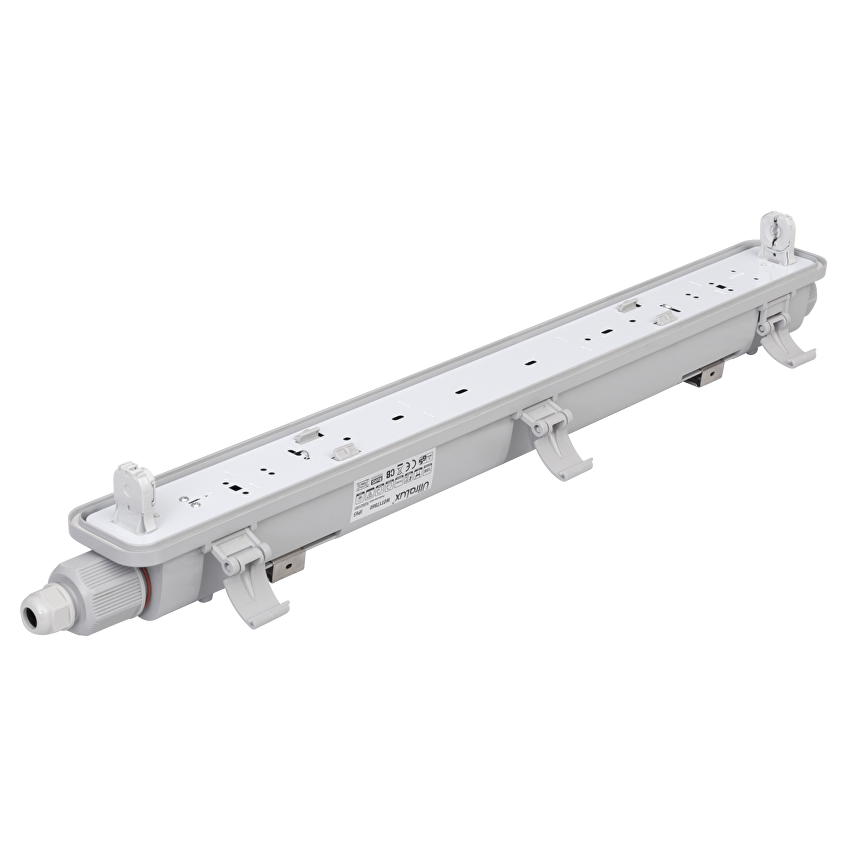

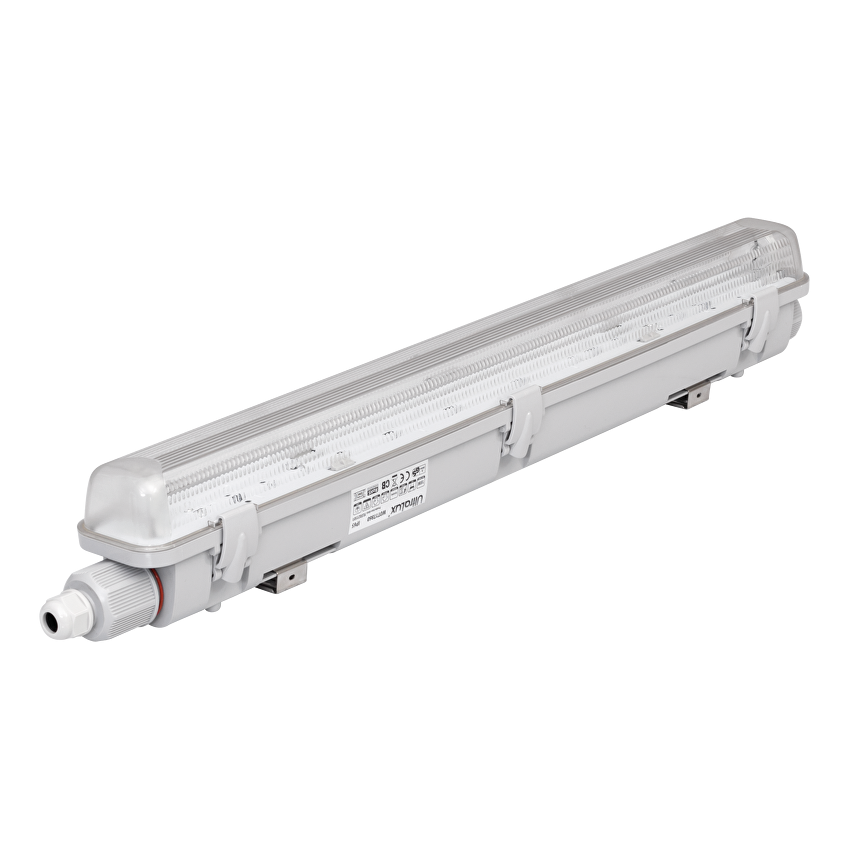

Waterproof lighting fixture for LED tubes 1xT8 0,60 m

Aрт. № WOT1T860

Art № WOT1T860

description:

Silicone gasket, ensuring good dust and moisture protection of the diffuser.

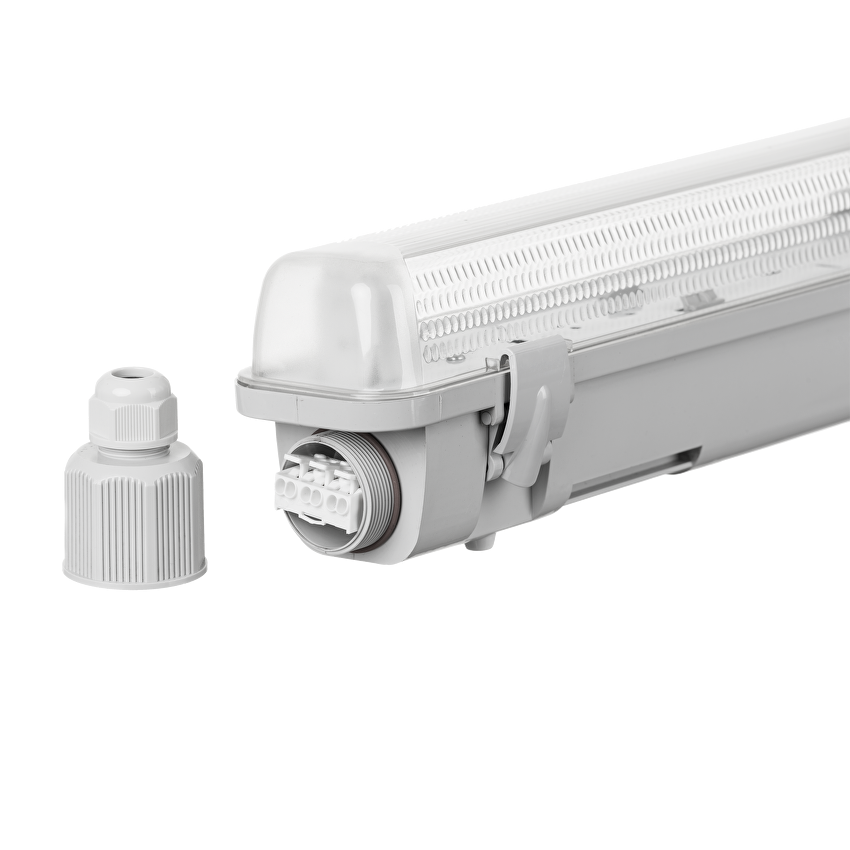

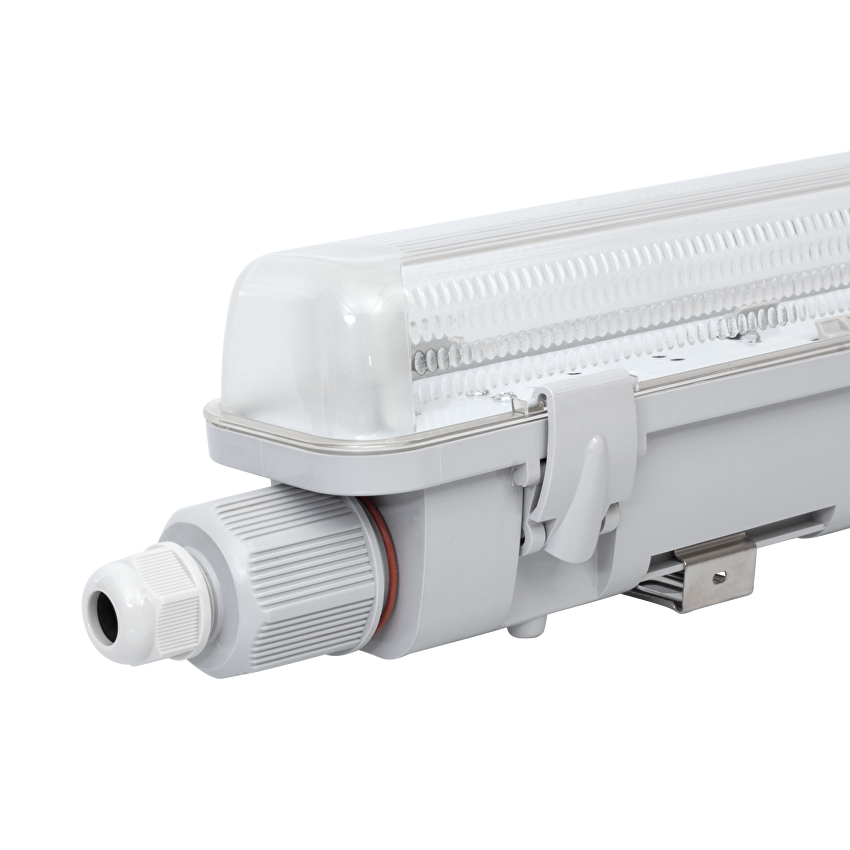

Polycarbonate locking clips for and a waterproof cable gland ensure a good waterproof function.
Polycarbonate housing and diffuser.
Prismatic diffuser with a special design provides optimal lighting distribution and minimizes the glare.
G13 sockets
Impact protection rate: IK08
Glow wire test: 850˚ C
Mounting brackets and accessories, ensuring quick and easy installation
Lightweight design

specifications:

Power	9W
Voltage AC	220-240V
Frequency	50-60Hz
Protection rating	IP65
Weight	0.84kg

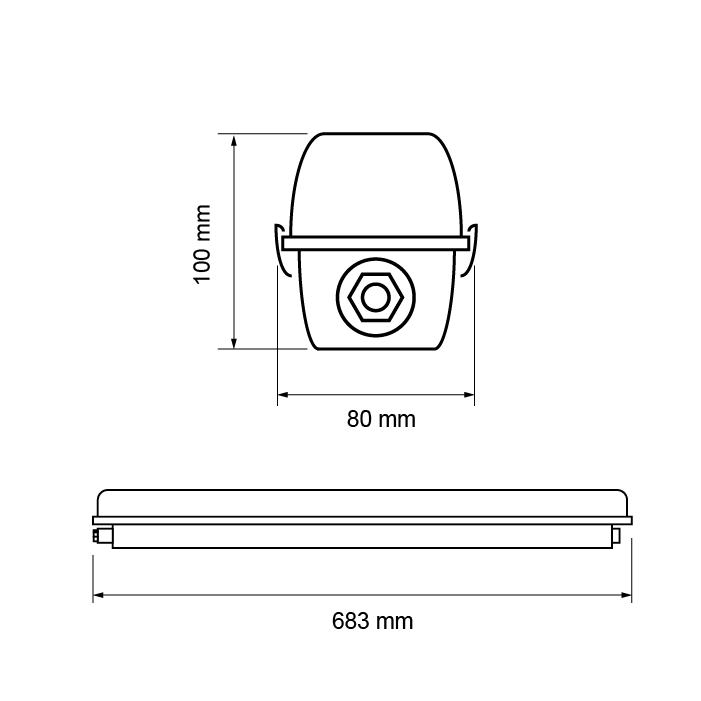

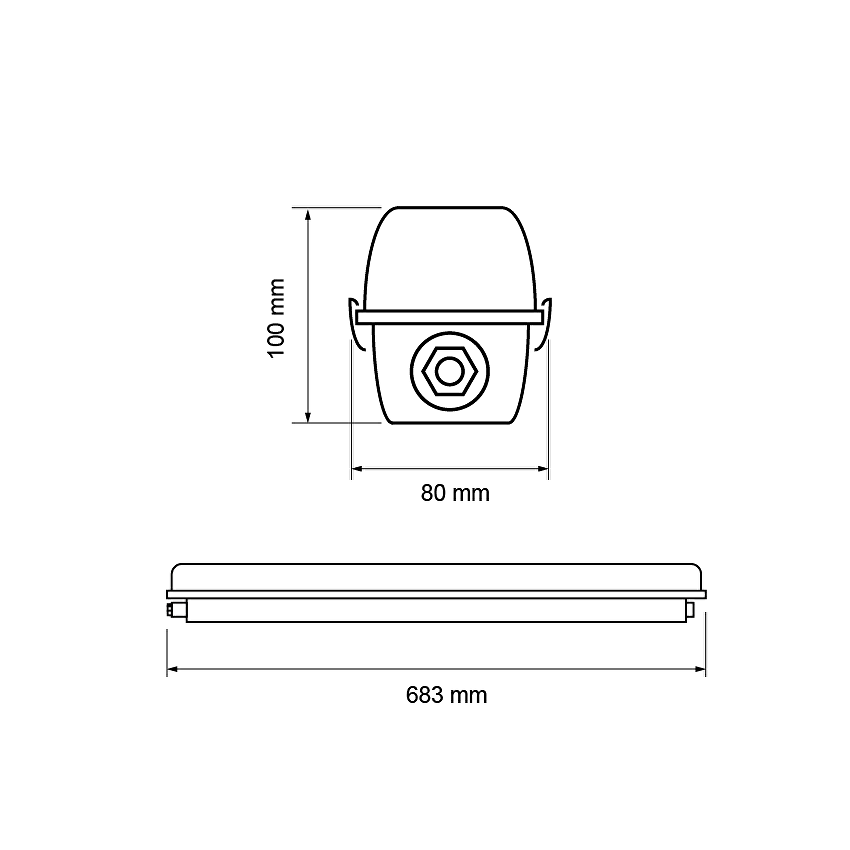

Dimensions	683/80/100mm
Socket	G13
Warranty	2 years
Lighting source	1 x LED tube LST8942 / LST8960
Max light intensity	302.76cd/klm
Efficiency	82lm/W
Beam angle	double symmetric⁰
Photometric file (.LDT)	Yes
Total luminous flux of the lighting sources	900lm
Luminous flux emited from the lighting source	755lm

description:

Waterproof lighting fixture for LED tubes 1xT8 0,60 m

Silicone gasket, ensuring good dust and moisture protection of the diffuser.
Polycarbonate locking clips for and a waterproof cable gland ensure a good waterproof function.
Polycarbonate housing and diffuser.
Prismatic diffuser with a special design provides optimal lighting distribution and minimizes the glare.
G13 sockets
Impact protection rate: IK08
Glow wire test: 850˚ C
Mounting brackets and accessories, ensuring quick and easy installation
Lightweight design

documents:
