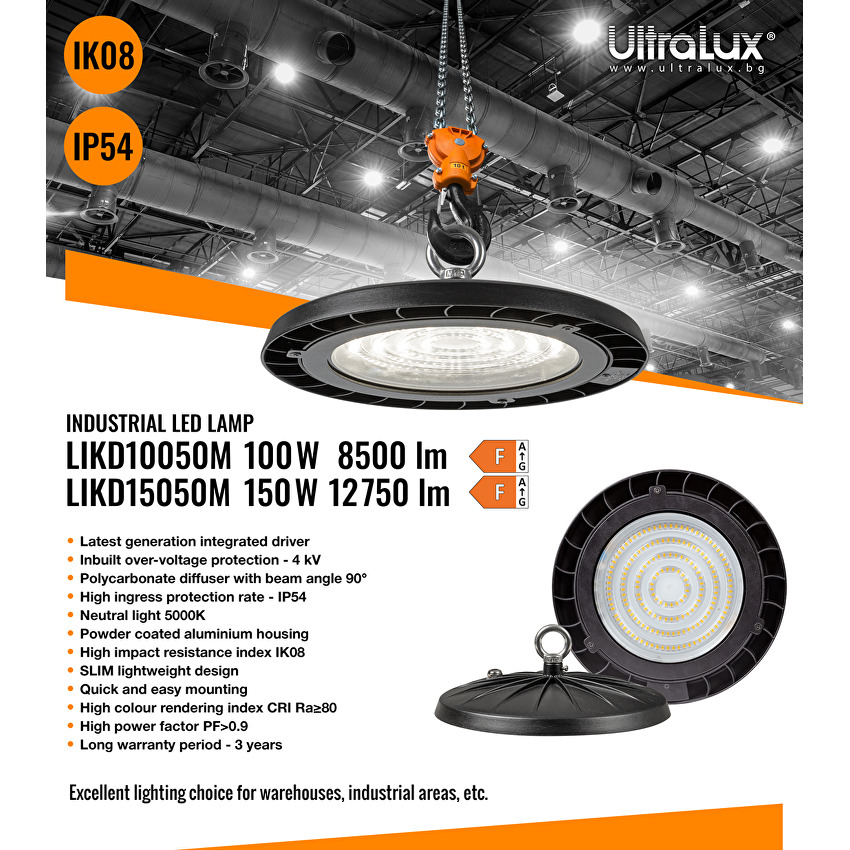

LED high bay 150W, 5000K, 220-240V AC, IP54

Aрт. № LIKD15050M
promo
LED high bay 150W, 5000K, 220-240V AC, IP54
LED high bay 150W, 5000K, 220-240V AC, IP54 LED high bay 150W, 5000K, 220-240V AC, IP54 LED high bay 150W, 5000K, 220-240V AC, IP54

LED high bay 150W, 5000K, 220-240V AC, IP54

Art № LIKD15050M
Energy class F
description:

LED high bay using the DOB technology. The luminaire is offered in 100W with neutral light 5000K.

  • Latest generation of built-in driver belonging to the innovative DOB (Driver On Board) technology – the elements of the driver are positioned on the LED PCB. The driver has good reliability and long exploitation period;
  • Highly efficient LED chips.
  • Polycarbonate optical diffuser with 90° beam angle. The polycarbonate has excellent mechanical strength, optical transparency and UV resistance
  • The tempered protection glass and special additional sealings help to achieve an ingress protection rate IP54the luminaire is not suitable for use in open areas (direct weather impact). The tempered glass has high mechanical strength that improves the safety of the product. It is very unlikely to break it, but if this eventually happens the glass will shatter into very small pieces, which reduces the risk of hurting people;
  • Built-in surge protection – up to 4 kV
  • Powder-coated housing made of aluminum ensures corrosion resistance;
  • SLIM design and light housing;
  • Stainless steel hook allows quick and easy suspension mounting;

Excellent lighting solution for warehouses, industrial facilities, etc.

specifications:
Power 150W
Voltage AC 220-240V
Power factor >0.9
Class I
Driver DOB
Efficiency 85lm/W
Protection rating IP54
Impact protection rate IK08
Working temperature range -20 ⁰C ÷ +40 ⁰C
Diffuser PC
On/Off cycles >15000
Housing powder coated aluminium die-cast
Weight 2.60kg
Dimensions ∅310/110mm
Lumen Maintenance LM80 >30000h
Warranty 3 years
Rated luminous flux 12750lm
Correlated Color Temperature (CCT) 5000K
Color Rendering Index (CRI) >80
Beam angle 90⁰
LED type SMD3030
Photometric file (.LDT) Yes
description:

LED high bay using the DOB technology. The luminaire is offered in 100W with neutral light 5000K.

  • Latest generation of built-in driver belonging to the innovative DOB (Driver On Board) technology – the elements of the driver are positioned on the LED PCB. The driver has good reliability and long exploitation period;
  • Highly efficient LED chips.
  • Polycarbonate optical diffuser with 90° beam angle. The polycarbonate has excellent mechanical strength, optical transparency and UV resistance
  • The tempered protection glass and special additional sealings help to achieve an ingress protection rate IP54the luminaire is not suitable for use in open areas (direct weather impact). The tempered glass has high mechanical strength that improves the safety of the product. It is very unlikely to break it, but if this eventually happens the glass will shatter into very small pieces, which reduces the risk of hurting people;
  • Built-in surge protection – up to 4 kV
  • Powder-coated housing made of aluminum ensures corrosion resistance;
  • SLIM design and light housing;
  • Stainless steel hook allows quick and easy suspension mounting;

Excellent lighting solution for warehouses, industrial facilities, etc.
