LED street lamp 60W, 4000K, 220V-240V AC, IP66

Aрт. № LUTDH6040
LED street lamp 60W, 4000K, 220V-240V AC, IP66
LED street lamp 60W, 4000K, 220V-240V AC, IP66 LED street lamp 60W, 4000K, 220V-240V AC, IP66 LED street lamp 60W, 4000K, 220V-240V AC, IP66 LED street lamp 60W, 4000K, 220V-240V AC, IP66

LED street lamp 60W, 4000K, 220V-240V AC, IP66

Art № LUTDH6040
description:

А new range (LUTDH) of LED street lamps UltraLux with 20W, 40W, 60W, 100W power, improved efficacy 130 lm/w and colour temperature of 4000K (neutral light).

Advantages:

  • Highly efficient diodes LUMILEDS  - 130 lm/W;

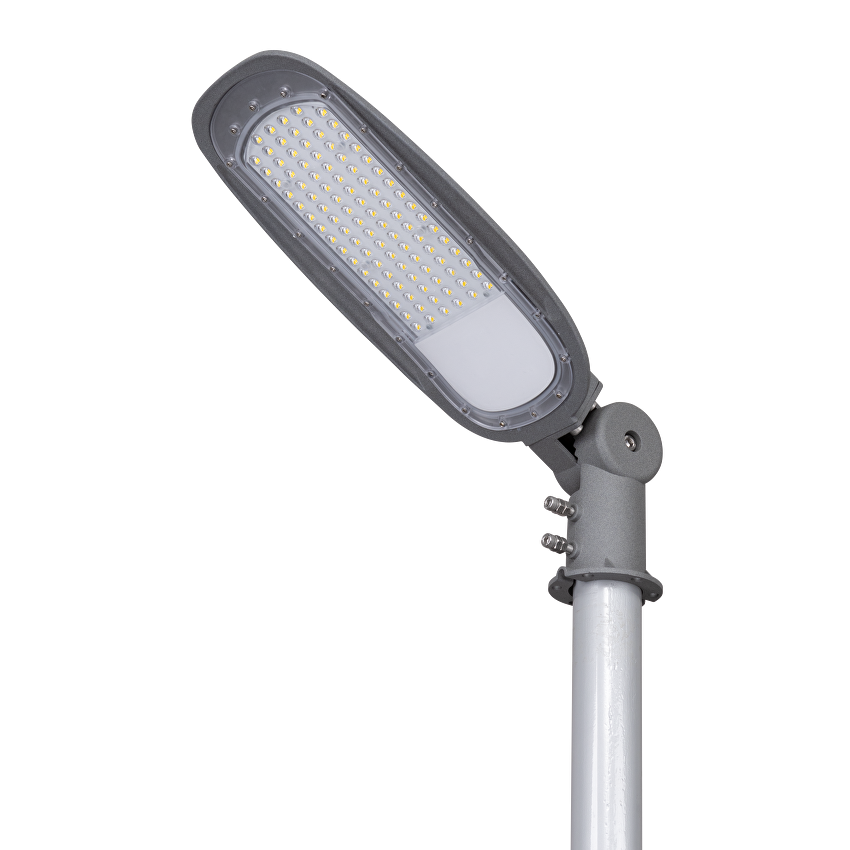

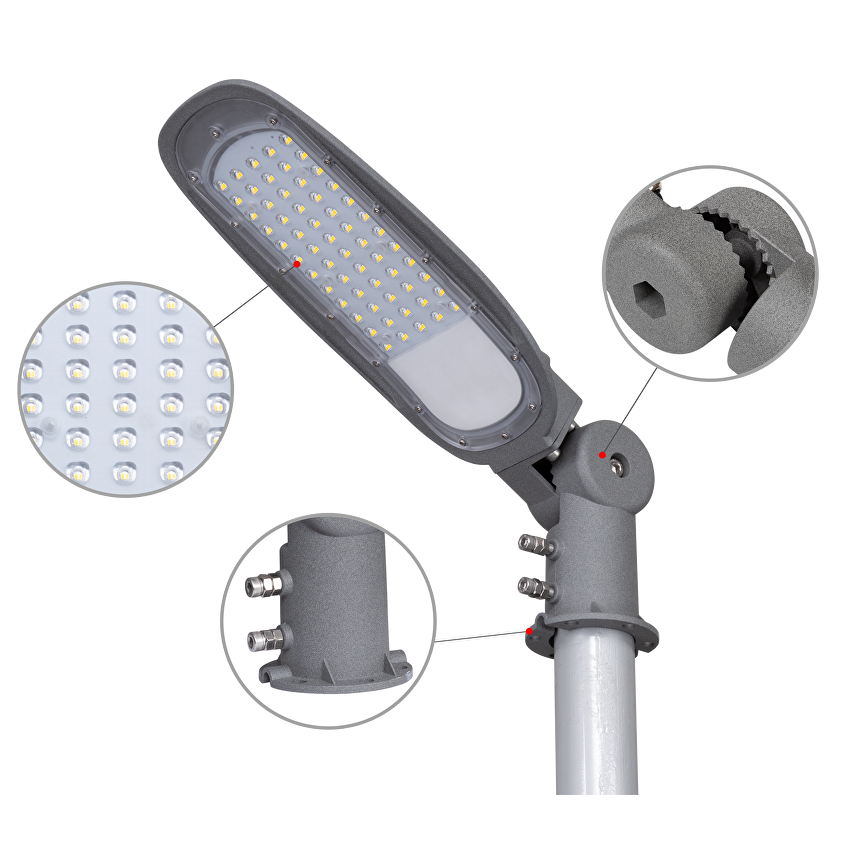

  • Specially designed flange allows mounting on a wall or a pole, as well as regulation of the mounting angle in wide range – from 90 ° to 270 °;
  • Built-in surge protection up to 4 kV;
  • Compact dimensions, lightweight housing and simplistic design, helping the lamp to self-clean from dust and other particles;
  • Optical polycarbonate system on each diode creates an asymmetrical lighting distribution type Т3A;
  • Powder-coated aluminum housing ensures mechanical strength, corrosion resistance and effective cooling;
  • High-tech integrated driver;
  • Ingress protection rate IP66;
  • Short term flicker perceptibility Pst<1;
  • Power factor DF>0.9;
  • Impact resistance index IK08.

Usage:

  • Street lighting;
  • Parking lighting;
  • Park and garden lighting;
  • Alleyway lighting.
specifications:
Power 60W
Voltage AC 220-240V
Power factor >0.9
Driver built-in, non-dimmable
Efficiency >130lm/W
Protection rating IP66
Impact protection rate IK08
Working temperature range -20 ⁰C ÷ +45 ⁰C
Diffuser UV resistant PC with a lens on each LED
On/Off cycles >30000
Weight 1.95kg

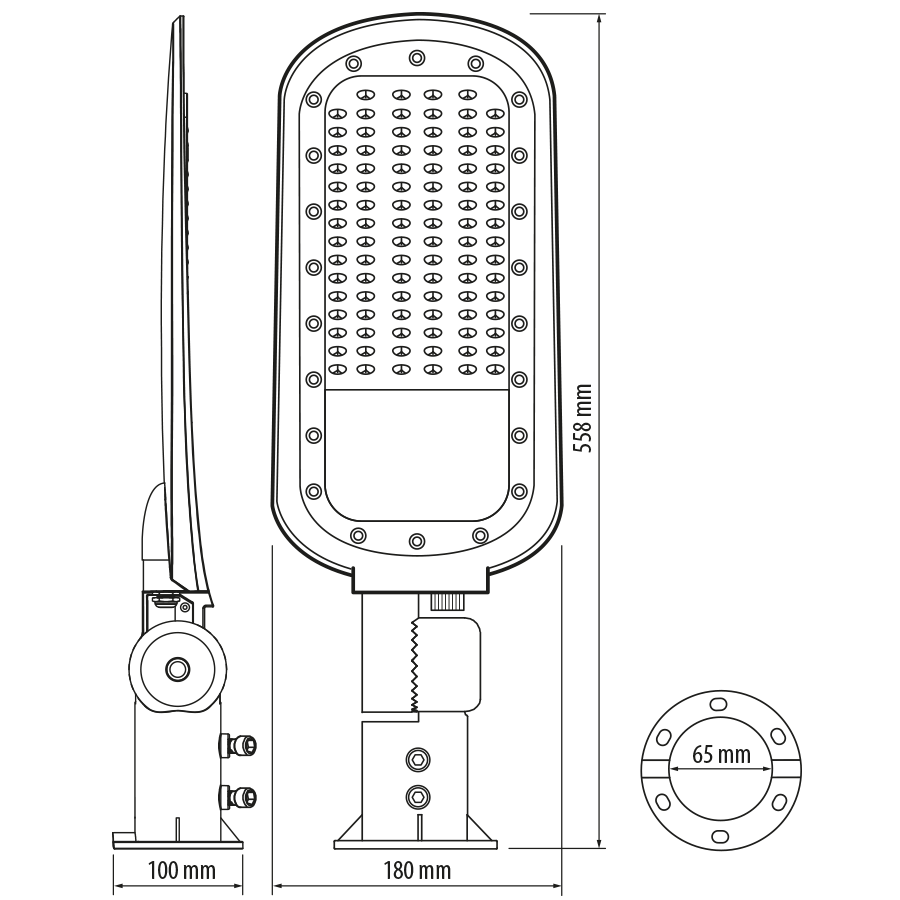

Dimensions 558/180/100mm
Lumen Maintenance LM80 >50000h
Warranty 5 years
Rated luminous flux 7800lm
Correlated Color Temperature (CCT) 4000K
Color Rendering Index (CRI) >70
LED type LUMILEDS
Photometric file (.LDT) Yes
