LED high bay 150W, 5000K, 220-240V AC, IP54

Aрт. № LIKD15050
LED high bay 150W, 5000K, 220-240V AC, IP54
LED high bay 150W, 5000K, 220-240V AC, IP54 LED high bay 150W, 5000K, 220-240V AC, IP54 LED high bay 150W, 5000K, 220-240V AC, IP54

LED high bay 150W, 5000K, 220-240V AC, IP54

Art № LIKD15050
Energy class E
description:

LED high bay using the DOB technology. The luminaire is offered in 100W with neutral light 5000K.

  • Latest generation of built-in driver belonging to the innovative DOB (Driver On Board) technology – the elements of the driver are positioned on the LED PCB. The driver has good reliability and long exploitation period;
  • Highly efficient LED chips LUMILED – 100 lm/W.
  • Polycarbonate optical diffuser with 90° beam angle. The polycarbonate has excellent mechanical strength, optical transparency and UV resistance;
  • The tempered protection glass and special additional sealings help to achieve an ingress protection rate IP54 – the luminaire is also suitable for interior lighting. The tempered glass has high mechanical strength that improves the safety of the product. It is very unlikely to break it, but if this eventually happens the glass will shatter into very small pieces, which reduces the risk of hurting people;
  • Built-in surge protection – up to 4 kV;
  • Powder-coated housing made of aluminum ensures corrosion resistance;
  • High impact resistance index IK08;
  • SLIM design and light housing;
  • Stainless steel hook allows quick and easy suspension mounting;

Excellent lighting solution for warehouses, industrial facilities, etc.

specifications:
Power 150W
Voltage AC 220-240V
Power factor >0.9
Driver DOB
Efficiency 100lm/W
Protection rating IP54
Impact protection rate IK08
Working temperature range -20 ⁰C ÷ +40 ⁰C
Diffuser PC
On/Off cycles >30000
Housing powder coated aluminium die-cast
Weight 1.7kg

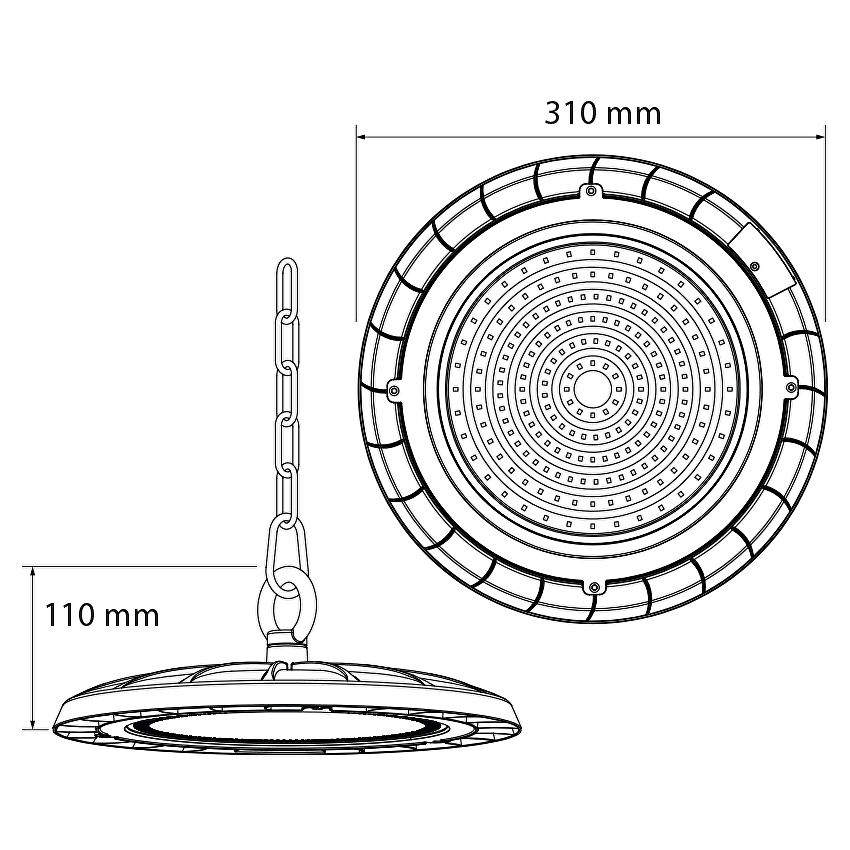

Dimensions ∅310/110mmmm
Lumen Maintenance LM80 >50000h
Warranty 3 years
Rated luminous flux 15000lm
Correlated Color Temperature (CCT) 5000K
Color Rendering Index (CRI) >80
Beam angle 90⁰
LED type SMD3030
Photometric file (.LDT) Yes
description:

LED high bay using the DOB technology. The luminaire is offered in 100W with neutral light 5000K.

  • Latest generation of built-in driver belonging to the innovative DOB (Driver On Board) technology – the elements of the driver are positioned on the LED PCB. The driver has good reliability and long exploitation period;
  • Highly efficient LED chips LUMILED – 100 lm/W.
  • Polycarbonate optical diffuser with 90° beam angle. The polycarbonate has excellent mechanical strength, optical transparency and UV resistance;
  • The tempered protection glass and special additional sealings help to achieve an ingress protection rate IP54 – the luminaire is also suitable for interior lighting. The tempered glass has high mechanical strength that improves the safety of the product. It is very unlikely to break it, but if this eventually happens the glass will shatter into very small pieces, which reduces the risk of hurting people;
  • Built-in surge protection – up to 4 kV;
  • Powder-coated housing made of aluminum ensures corrosion resistance;
  • High impact resistance index IK08;
  • SLIM design and light housing;
  • Stainless steel hook allows quick and easy suspension mounting;

Excellent lighting solution for warehouses, industrial facilities, etc.
